Overview

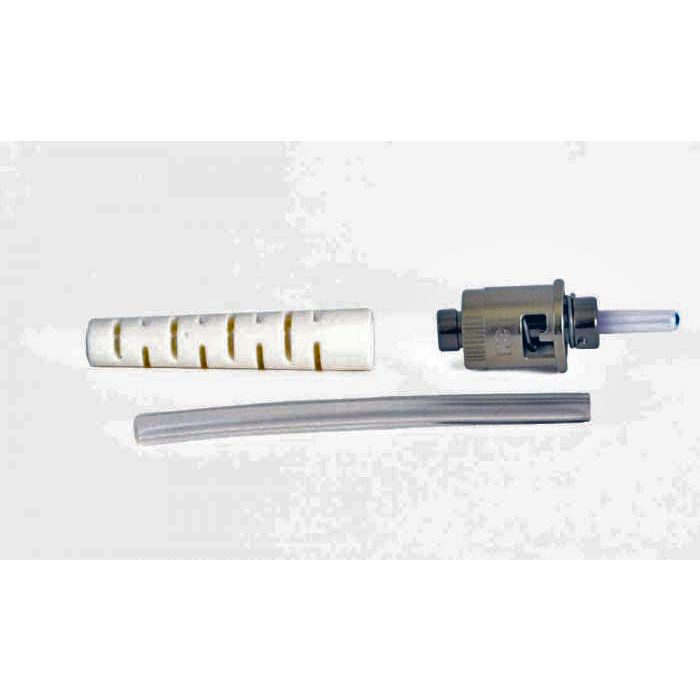

The 3M ST Hot Melt Connector is a field-installable fiber optic connector designed for rapid and efficient termination. Utilizing advanced pre-loaded adhesive technology, this connector eliminates the need for messy liquid epoxies, significantly reducing preparation and curing time for fiber technicians.
Engineered for multimode 125µm fiber applications, the connector allows for complete termination in two minutes or less. Its unique design is re-heatable, providing installers the flexibility to reposition the fiber if necessary during the termination process, which helps reduce waste and rework in the field.
Key Features
-
Rapid Termination
Capable of being terminated in two minutes or less, increasing installation efficiency. -
Re-heatable Design
Allows for fiber repositioning to ensure proper alignment and connection quality. -
Epoxy-Free
Utilizes advanced adhesive technology, eliminating the requirement for separate epoxy application. -
Low Insertion Loss
Features a typical insertion loss of 0.2dB for high-performance signal integrity. -
Multimode Compatibility
Precision-engineered for 125µm multimode fiber infrastructures. -
Field Proven
A standard choice for rapid field deployments where time and reliability are critical.
Applications
- Local Area Networks (LANs)
- Fiber-to-the-Desk (FTTD)
- Data center cable terminations
- Field repair of damaged fiber links
- Fiber optic patch panel installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | 3M |
| Model | ST Hot Melt |
| Part Number | 6100 |
| Fiber Type | Multimode |
| Fiber Diameter | 125µm |
| Typical Insertion Loss | 0.2dB |
| Termination Time | ≤ 2 Minutes |
Frequently Asked Questions
Does this connector require epoxy?
No, it utilizes an advanced pre-loaded adhesive that is activated by heat.
Can I reuse the connector if my first termination attempt is misaligned?
Yes, the adhesive is re-heatable, allowing you to re-adjust the fiber.
What type of fiber is this connector compatible with?
It is designed specifically for 125µm multimode fiber.
How long does it take to terminate?
The termination process is designed to be completed in two minutes or less.
What is the typical insertion loss for this connector?
The typical loss is 0.2dB.
