Overview

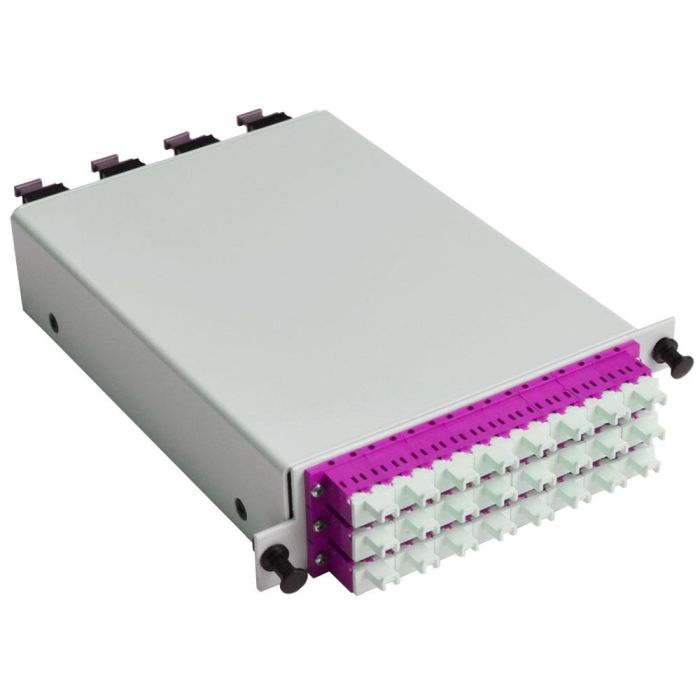

The 3X High Density Breakout Cassette is a modular, high-density solution engineered to accelerate installation and improve cost efficiency in dense network environments. This cassette facilitates the transition between multi-fiber MPO trunk cables and standard duplex LC patch cables, making it an essential component for high-count fiber management.
Designed for integration within the 1RU 3X High Density Cassette Enclosure, this system supports up to 144 fibers within a single 1RU space when fully populated with three cassettes. The unit is constructed for rapid deployment, helping network operators maintain clean, organized, and scalable cabling architectures.
Key Features
-
High-Density Capacity
Supports up to 48 fibers in a compact modular form factor, maximizing rack space utilization. -
Efficient Transitioning
Enables seamless conversion from MPO trunk cables to duplex LC connectivity for simplified patching. -
Modular Design
Compatible with 1RU 3X HD Enclosures, allowing for scalable infrastructure upgrades. -
Factory Tested
Each unit undergoes factory testing to ensure consistent optical performance and network reliability. -
Elite Components
Equipped with high-grade Elite MPO adapters to minimize insertion loss. -
Simplified Identification
Features removable fiber ID cards and labeled MPO ports for easy circuit mapping and documentation.
Applications
- Data center high-density patching
- Network infrastructure migration
- Enterprise LAN/SAN environments
- Central office fiber management
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 48 |
| Fiber Type | Multimode OM4 |
| Connector A | 24 x Duplex LC/PC |
| Connector B | 4 x MPO/Male |
| Polarity | Type B |
| Adapter Color | Magenta (LC), Off-White (Housing) |
Frequently Asked Questions
What is the maximum fiber density for a 1RU enclosure using these cassettes?
When using the 1RU 3X High Density Cassette Enclosure populated with three 48-fiber cassettes, the system supports up to 144 fibers.
Are the MPO connectors pinned?
Yes, these cassettes are built with male MPO (pinned) connectors.
What is the polarity configuration?
This specific model is configured as Polarity Type B.
Does this cassette include identification labeling?
Yes, it features removable fiber ID cards and labeled MPO ports for improved cable management.
Is this compatible with standard LC patch cables?
Yes, the cassette transitions MPO trunk cables to standard duplex LC patch cables.
