Overview

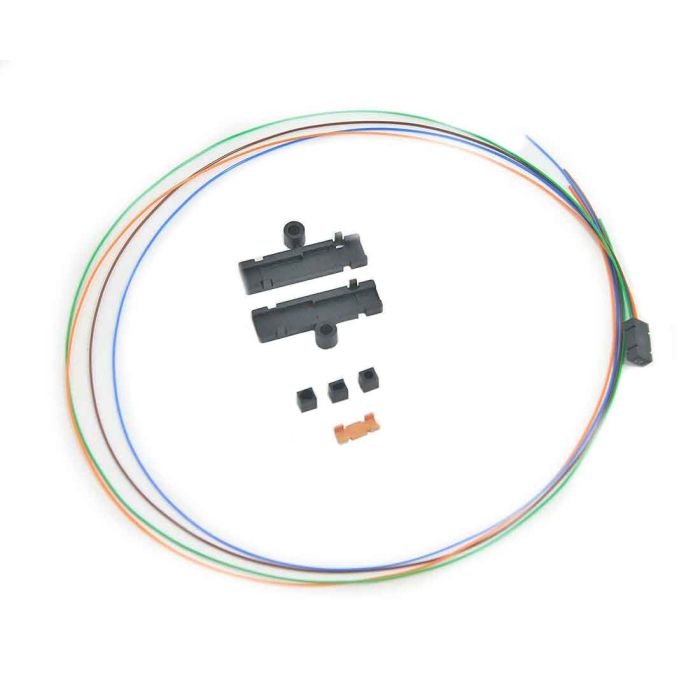

The 4 Fiber Buffer Tube/Ribbon Fan-Out Kit is engineered to provide a simple, efficient method for breaking out individual fibers from standard buffer tubes or ribbon cables. This kit is specifically designed for 4-fiber applications and includes 25-inch lengths of 900µm Hytrel tubing, pre-configured in industry-standard color codes for clear identification during termination.
Featuring a unique snap-together housing, the kit allows for quick assembly and offers the flexibility of reentry if adjustments are required. The included adapters accommodate various round cable configurations, making it a versatile component for field installations in data centers and telecommunication environments.
Key Features
-
Easy Breakout Design
Facilitates a straightforward transition from standard buffer tubes or ribbon cables to 900µm buffered fibers. -

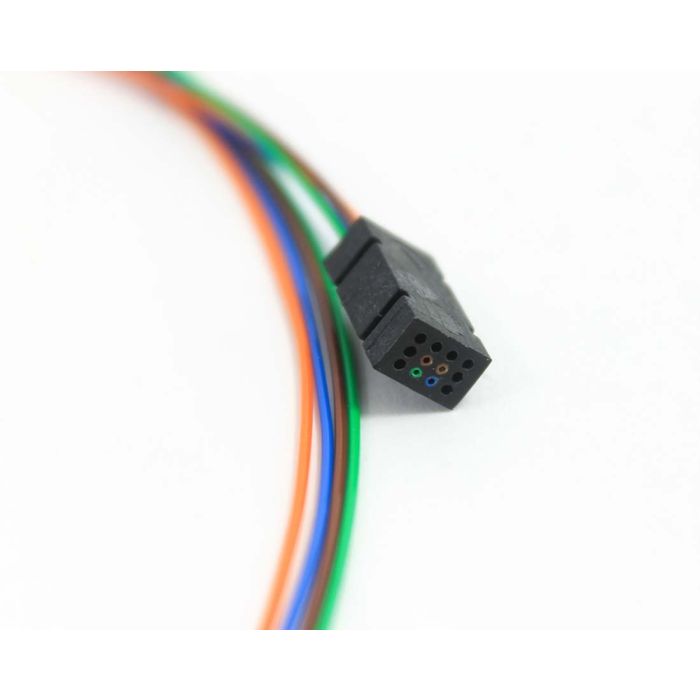

Pre-Configured Color Coding
Includes tubing in industry-standard colors to simplify fiber identification and reduce termination errors. -
Snap-Together Housing
Enables rapid installation and provides the capability for simple reentry for maintenance or troubleshooting. -
Versatile Compatibility

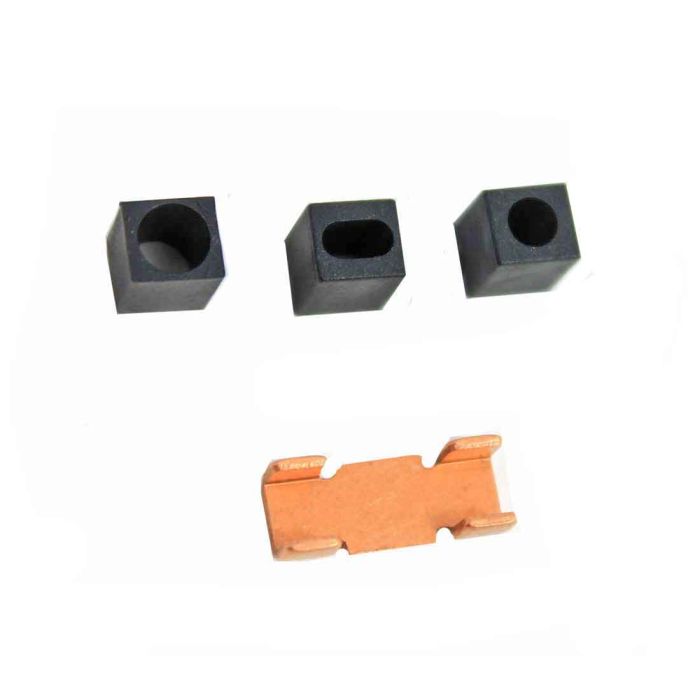

Adapters are included to support various round cable configurations, including both buffer tubes and ribbon cables. -
900µm Hytrel Tubing
Utilizes durable material for protected fiber management from the cable jacket to the connector interface. -
Optimized for 4-Fiber Applications
Specifically configured to streamline the deployment of 4-fiber breakout segments.
Applications
- Data center fiber management
- Central office/Headend cable transitions
- Termination of ribbon cables
- Buffer tube breakout
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 4 |
| Tubing Length | 25 inches |
| Tubing Diameter | 900µm |
| Fiber Compatibility | 250µm |
| Tubing Material | Hytrel |
| Design | Snap-together / Re-enterable |
Frequently Asked Questions
Does this kit support ribbon cable?
Yes, the kit is compatible with both ribbon cables and standard buffer tubes.
Can I reopen the kit after it is snapped together?
Yes, the unit features a snap-together design that allows for reentry if necessary.
What fiber sizes does this accept?
The kit is designed to accept 250µm fibers.
Is the tubing color-coded?
Yes, the 900µm tubing is provided in industry-standard color codes.
Are adapters included?
Yes, the kit includes adapters to accommodate various round cable configurations.
