Overview

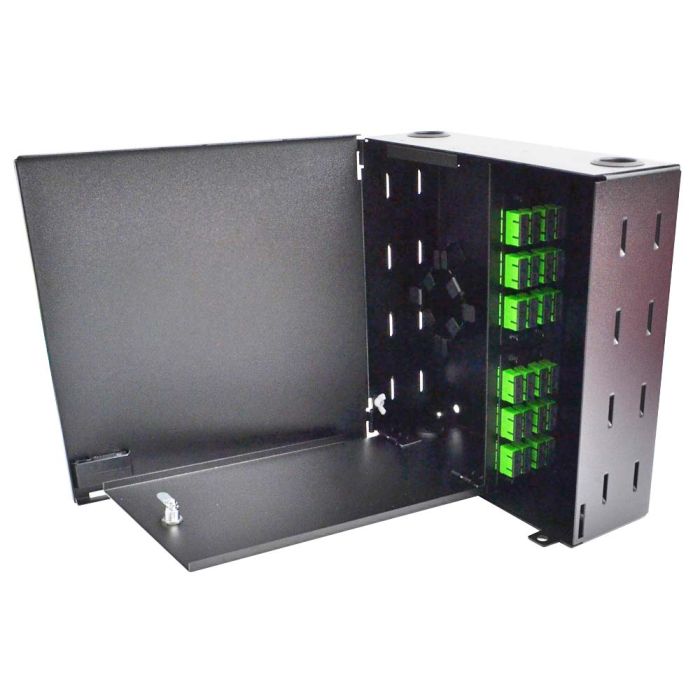

The Deluxe Wall Mount Patch Panel is a preloaded, plug-and-play enclosure designed to streamline fiber optic installations in the field. This unit is built to facilitate both patching and splicing within a single, secure environment, making it ideal for telecommunications and data network infrastructure.
Constructed from rugged 14-gauge black aluminum, the enclosure provides durability for demanding operating environments. It features a spacious splicing bay, integrated cable management brackets, and a raised splice tray platform, allowing for organized cable routing and maintenance. The unit is designed with versatile cable entry points at the top and bottom, utilizing open S-style entry ports for efficient installation.
Key Features
-
Preloaded Design
Comes equipped with adapter plates and splice trays to reduce deployment time in the field. -
Robust Construction
Manufactured from 14-gauge aluminum for protection in industrial environments. -
Integrated Cable Management
Features built-in rings and tie-down points to maintain fiber bend radius and organization. -
Flexible Cable Entry
Top and bottom S-style entry ports allow for versatile mounting and cable routing configurations. -
Secure Access
Includes removable dual-hinged doors with snap-latch security and padlock eyelets for enhanced physical protection. -
Splicing Capability
Includes a raised platform compatible with two 24-fiber splice trays for organized terminations.
Applications
- Data Centers
- Telecommunication Closets
- Enterprise Fiber Networks
- Wall-mount network termination points
Technical Specifications
| Specification | Value |
|---|---|
| Enclosure Type | Deluxe Wall Mount |
| Capacity | 4 LGX Adapter Plates |
| Splice Tray Capacity | Holds (2) 24 Fiber Splice Trays |
| Adapter Plates | 4 Duplex SC/APC |
| Material | 14 Gauge Aluminum |
| Color | Black |
| Cable Entry | Top and Bottom S-Style Ports |
| Door Configuration | Removable Dual Hinged |
Frequently Asked Questions
Does this enclosure include the splice trays?
Yes, the unit is preloaded with splice trays and adapter plates.
Can the doors be locked?
Yes, the doors feature snap-latch security and include eyelets for padlocks.
What kind of fiber connectors does it come with?
The enclosure comes preloaded with 4 duplex SC/APC adapter plates.
Where can cables enter the enclosure?
Cables can be routed through either the top or bottom using the integrated S-style entry ports.
What is the material construction?
The enclosure is manufactured from rugged 14-gauge aluminum.
