Overview

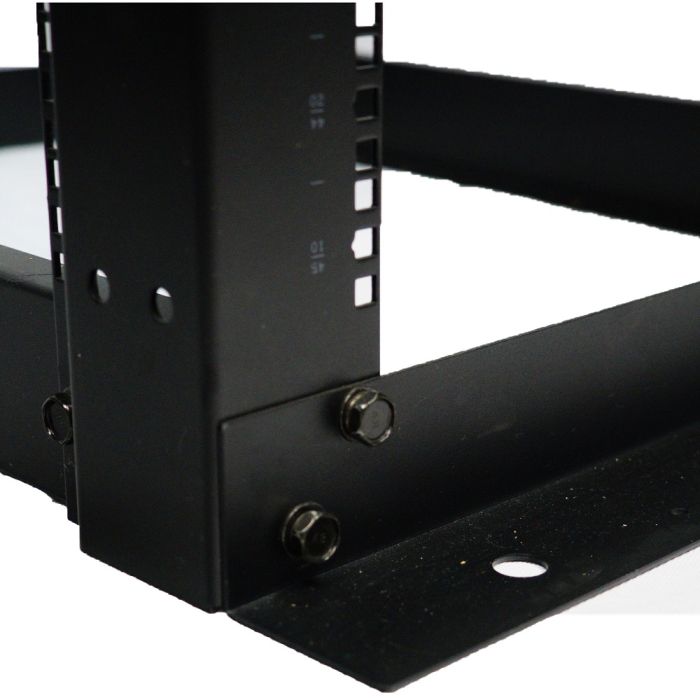

The 4 Post Open Frame Floor Rack provides a robust and accessible solution for housing networking equipment, servers, and patch panels. Designed for high-density environments, this 45RU rack offers a versatile mounting platform that balances structural integrity with ease of access for cabling and device maintenance.
Constructed from high-strength 2.5mm steel, this rack is built to support significant equipment loads in professional data center or telecommunication room environments. Its open architecture ensures optimal airflow for passive cooling and provides unobstructed access to the rear and side of installed components, making it an ideal choice for rapid server deployment and organized cable management.
Key Features
-
Heavy-Duty Construction
Manufactured with 2.5mm steel to provide a sturdy, stable frame for heavy server and networking equipment. -
High Load Capacity
Supports a maximum load of 800lbs, ensuring safe mounting for various rack-mount hardware. -
Standard 45RU Height
Offers 45 rack units of mounting space, maximizing vertical density in limited floor footprints. -

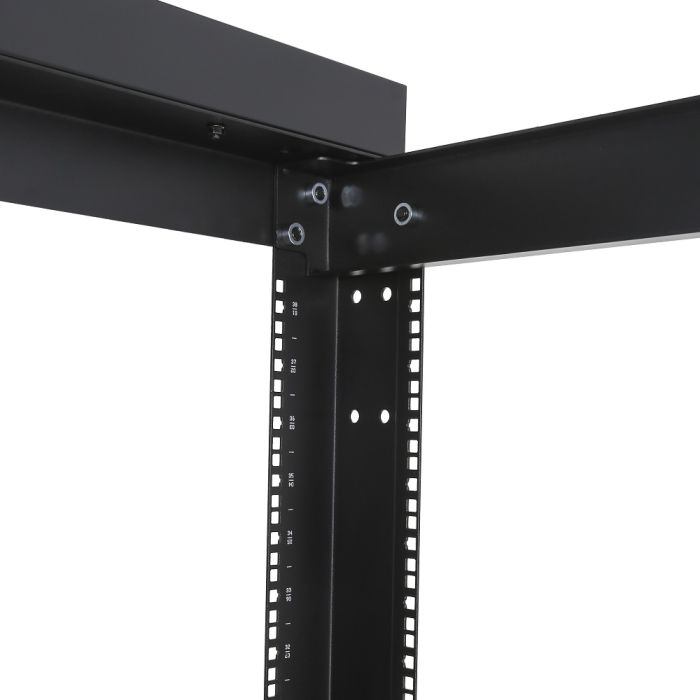

Square Hole Mounting
Features square-punched rails compatible with cage nuts, allowing for secure and versatile equipment installation. -

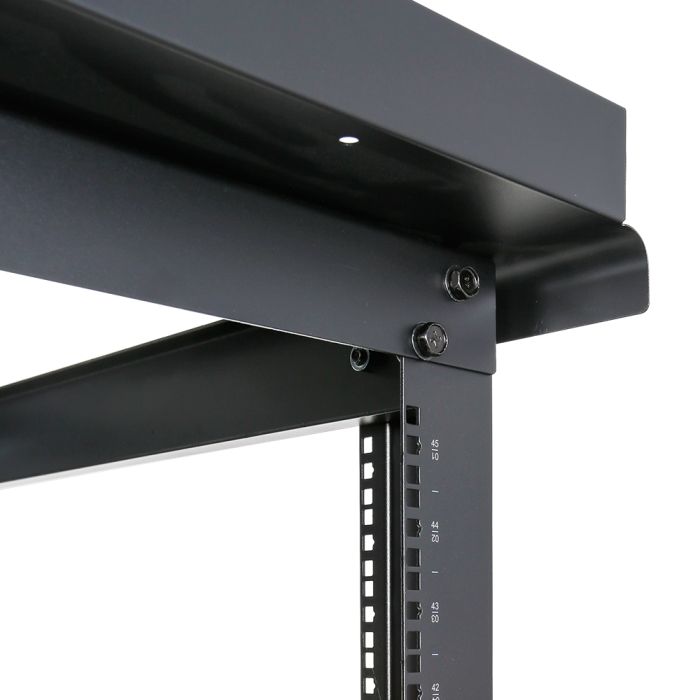

Integrated Markings
Mounting rails include clear RU markings to simplify equipment positioning and ensure uniform installation. -
Electrostatic Finish
Includes a black electrostatic surface treatment that resists wear and provides a professional appearance.
Applications
- Data Centers
- Telecommunication Rooms
- Server Closets
- Patch Panel Management
- Network Device Mounting
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1FR45RU4PSH |
| Rack Units | 45RU |
| Mounting Width | 19 inch |
| Construction Material | 2.5mm Steel |
| Maximum Load Capacity | 800 lbs |
| Dimensions (H x W x D) | 83.71" x 23.62" x 29.53" |
| Hole Type | Square (for cage nuts) |
| Finish | Black Electrostatic |
Frequently Asked Questions
Does this rack include cage nuts?
The rack is designed with square holes for cage nuts, but specific hardware included should be verified upon delivery.
What is the maximum weight this rack can support?
The rack has a tested maximum load capacity of 800lbs.
Is the rack suitable for server deployment?
Yes, its 4-post design and load rating make it suitable for patch panels, network switches, and server deployments.
Are the mounting rails marked?
Yes, the mounting rails feature clearly marked rack unit (RU) positions for easier equipment installation.
What type of finish does the rack have?
It features a black electrostatic powder coat finish for durability and a professional aesthetic.
