Overview

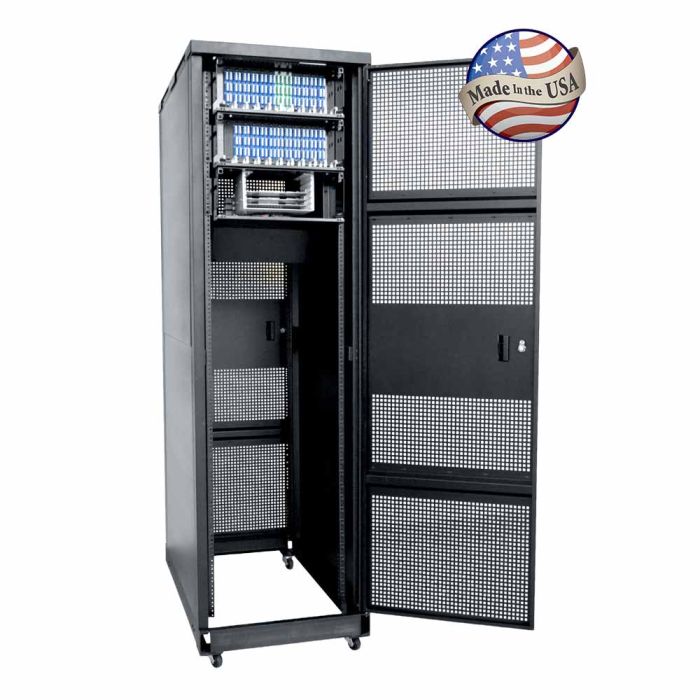

The 4 Post Server Cabinet is a professional-grade enclosure designed for high-density data center and telecommunications environments. Providing 42RU of vertical rack space, this cabinet is engineered for durability and heavy equipment support, featuring a robust all-aluminum construction capable of handling a static load of up to 2,400 lbs.
This enclosure is designed for secure, organized equipment deployment. It includes front and rear locking doors to restrict access, while the vented, perforated design ensures optimal airflow to maintain equipment temperatures. The cabinet is finished in a durable matte black powder coating and conforms to ANSI/EIA-310-D mounting configurations to ensure compatibility with standard 19" rack-mount gear.
Key Features
-
High Static Load Capacity
Supports up to 2,400 lbs, allowing for the deployment of heavy servers and power equipment. -
Standard 42RU Capacity
Provides extensive vertical space for mounting high-density network and computing hardware. -
Vented Design
Perforated doors promote consistent airflow, helping to prevent equipment overheating. -
ANSI/EIA-310-D Compliance
Ensures global compatibility with industry-standard 19" rack-mount equipment. -
Front and Rear Access
Locking doors on both sides simplify installation, cabling, and routine hardware maintenance. -
Labeled Mounting Rails
Silk-screened RU markings expedite equipment placement and configuration. -
All-Aluminum Construction
Lightweight yet rigid design for stable and long-term equipment housing.
Applications
- Data Centers
- Server Rooms
- Telecommunications Hubs
- Enterprise Network Closets
Technical Specifications
| Specification | Value |
|---|---|
| Rack Units | 42RU |
| Dimensions | 80"(h) x 23.5" (w) x 46"(d) |
| Static Load Capacity | 2,400 lbs |
| Mounting Width | 19" |
| Construction Material | All Aluminum |
| Finish | Matte black powder coated |
| Access Type | Front and rear locking doors |
| Standards | ANSI/EIA-310-D |
| Features | Labeled silk screen rails, Tapped holes, Vented/Perforated doors |
Frequently Asked Questions
Are the side panels removable?
Yes, the cabinet includes four removable 40" high side panels for easier access during installation.
What is the maximum static load?
The cabinet is rated for a static load capacity of up to 2,400 lbs.
Does this rack meet industry standards?
Yes, the rack conforms to ANSI/EIA-310-D mounting configurations.
Is the cabinet mobile?
It comes equipped with large casters and levelers to facilitate movement and secure positioning.
What type of mounting holes are used?
The mounting rails feature tapped holes for equipment installation.
