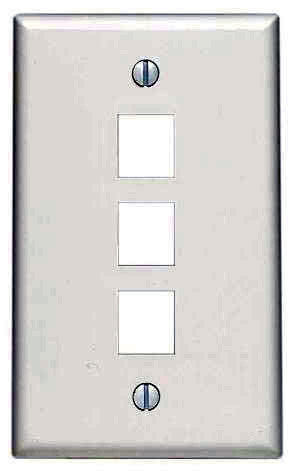

QuickPort Single Gang 3 Port Faceplate w/Designation Windows, Mfr Leviton
Move your mouse over image or click to enlarge

QuickPort Single Gang 3 Port Faceplate w/Designation Windows, Mfr Leviton

Leviton Part No.: 42080-3XS

  • $ 2.15 or


QuickPort Single Gang 3 Port Faceplate w/Designation Windows, Mfr Leviton

Applications:

Leviton's Single-Gang and Dual-Gang wallplates accept QuickPort snap-in modules to support multimedia station applications with 1, 2, 3, 4, 6, 8 and 12 ports. Use where port ID windows in a single-gang or dual-gang economical flush-mount housing is desired.

>> Product Features:

  • Color choice of white, almond, light almond, grey, ivory and black
  • Station ID designation windows for each wallplate
  • Color-matched wallplate screws
  • Fits within minimum rectangular NEMA openings
  • Compatible with all individual QuickPort modules
  • Individual-port configurability allows specification flexibility
  • Narrow module width allows high port density in a small area

>> Download Product Spec Sheet:

>> Physical Specifications:

Capacity:

  • Single-gang: Available in 1-, 2-, 3-, 4- or 6-port versions
  • Dual-gang: Available in 1-, 2-, 3-, 4-, 6-, 8- or 12-port versions

Materials:

  • High-impact, fire-retardant plastic rated UL 94V-0

Dimensions:

  • Single-gang: 4.53"H x 2.75"W x .925"D (in-wall depth, loaded)
  • Dual-gang: 4.53"H x 4.625"W x .925"D (in-wall, depth, loaded)

>> Design Considerations:

  • Single-gang fits standard NEMA single-gang backboxes; dual-gang fits both single- and dual-gang standard NEMA backboxes.
  • Put blanks (PN# 41084-B*B) in unused ports for future expansion.
  • Specify port identification method (colored modules, designation labels and custom silkscreening available). To ID ports, use different colored connectors for each application (full selection of TIA/EIA-606 compatible colors, 13 available), or Leviton's pre-printed Port Designation Labels. (PN#: 41080-LXB)
  • The higher port versions (4, 6, 8 and 12 ports) may be used for MUTOA (multi-user telecommunications outlet assembly) applications.
