Overview
This 48-fiber multimode micro distribution cable is engineered for high-density indoor environments where space is at a premium. Designed with a 50µm OM3 core, it supports high-bandwidth data center and enterprise premise network applications. The construction features individual subunits of 12 fibers each to facilitate efficient termination and cable management.
The cable is supplied with a riser-rated jacket, providing the necessary flame retardance for vertical installation paths. Its compact diameter and flexible design allow for improved airflow and easier routing in congested conduits, server racks, and equipment rooms.
Key Features
-
48-Fiber Count
Features high-density fiber management to support complex backbone and inter-connect requirements. -
50µm OM3 Multimode
Optimized for 10GbE network applications over required distances within the enterprise. -

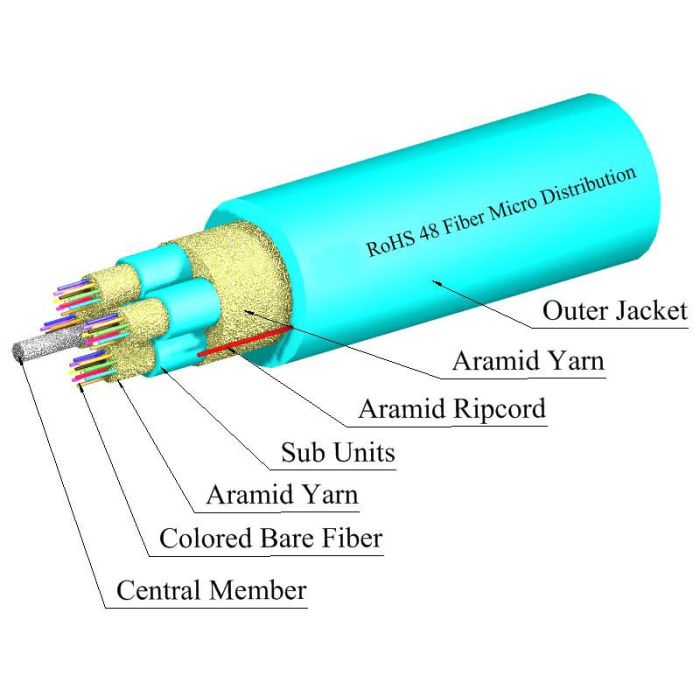

Subunit Construction
Fiber strands are grouped into 12-fiber subunits, simplifying identification and organization during termination. -
Riser-Rated Jacket
Constructed to meet riser-rated fire safety standards for vertical installation pathways in buildings. -
High-Density Design
Compact cable profile minimizes the footprint in congested trays and conduits. -
Indoor Suitability
Specifically engineered for reliable performance in data center and premise network environments.
Applications
- Data Centers
- Enterprise Premise Networks
- Backbone Cabling
- High-Density Inter-connects
- Vertical Riser Pathways
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 48 |
| Fiber Type | Multimode |
| Core Size | 50µm |
| OM Rating | OM3 |
| Cable Type | Micro Distribution |
| Rating | Riser |
Frequently Asked Questions
What is the fiber count of this cable?
This cable contains 48 fibers, organized into 12-fiber subunits.
Is this cable suitable for outdoor use?
No, this is a micro distribution cable designed specifically for indoor applications.
What is the jacket rating?
This specific cable is riser-rated for indoor vertical installations.
Can I order this with a different jacket type?
Plenum and LSZH jackets are available upon request for this series.
How is this cable sold?
This product is sold by the meter.
