Overview

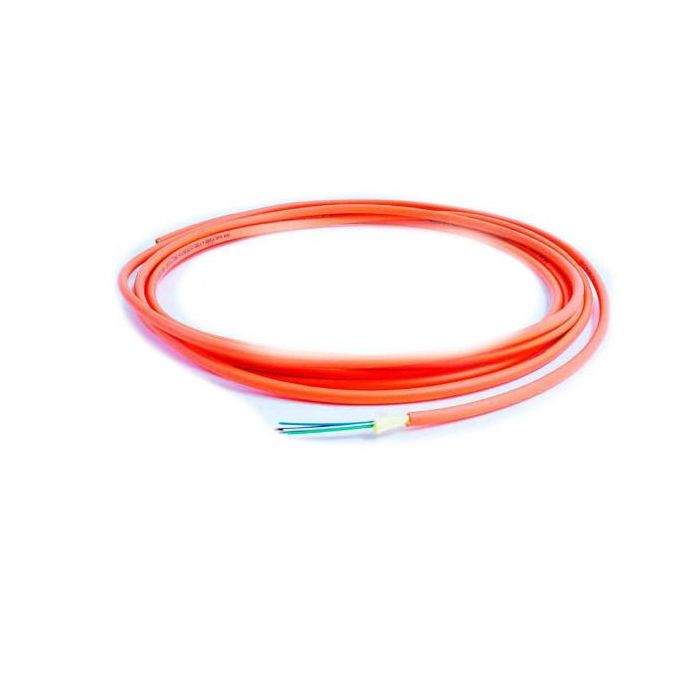

This 48-fiber distribution fiber optic cable is designed for high-density indoor networking applications. Featuring 62.5um OM1 multimode fiber, this cable is optimized for reliable data transmission within data centers, enterprise networks, and building backbones. The distribution-style construction facilitates efficient management and routing in confined spaces.
The cable incorporates 900um tight buffered fibers, which significantly simplifies the termination process by eliminating the need for breakout kits. Connectors can be terminated directly onto the tight buffered fibers, or pigtails can be fusion spliced to the backbone, providing flexibility for various installation requirements. This plenum-rated cable is engineered for use in air-handling spaces, adhering to necessary safety standards for indoor environments.
Key Features
-
900um Tight Buffered Construction
Allows for direct connector termination and simplifies field installations by eliminating the need for external breakout kits. -
48-Fiber Count
Provides high-density connectivity, supporting complex network architectures and backbone cabling requirements. -
OM1 Multimode Fiber
Utilizes 62.5um core multimode fiber, suitable for standard legacy data transmission distances. -
Plenum-Rated Jacket
Constructed with a fire-retardant material suitable for installation in plenum air-handling spaces. -
Distribution Design
Compact cable profile facilitates easier routing and installation in cable trays and conduits. -
Subunit Grouping
Fibers beyond 12-count are grouped in subunits of 12 for organized identification and management.
Applications
- Building backbone cabling
- Data center inter-connects
- LAN/WAN networks
- Plenum air-handling space installations
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 48 |
| Fiber Type | Multimode (OM1) |
| Core Size | 62.5um |
| Buffer Size | 900um Tight Buffered |
| Rating | Plenum |
| Jacket Color | Orange |
Frequently Asked Questions
Can I install this cable in an air-handling plenum space?
Yes, this cable features a plenum-rated jacket, making it suitable for installation in plenum environments.
Do I need breakout kits to terminate this cable?
No, the cable utilizes 900um tight buffered fibers, which allows for direct termination of connectors.
How are the fibers organized in this 48-fiber cable?
Fiber counts exceeding 12 are organized into structured subunits of 12 fibers each.
Is this cable suitable for fusion splicing?
Yes, the individual tight buffered fibers or pigtails can be readily fusion spliced to backbone cables.
Is this a loose tube or distribution cable?
This is a distribution-style cable, which is distinct from loose tube cables and is designed for indoor distribution applications.
