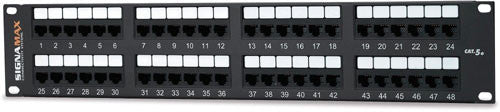

Cat 5e+ 48 port 2U
Move your mouse over image or click to enlarge

Cat 5e+ 48 port 2U

SignaMax Part No.: 48458MD-C5E

  • $ 183.08 or


Signamax Category 5E unshielded patch panels have been engineered for high-performance, high-density, and easy installation. These panels exceed both component and channel performance as specified in the ANSI/TIA/EIA 568C.2, ISO/IEC 11801, and EN 50173 standards, and include new features for port labeling, colour-coding, and cable management. These Signamax Category 5E panels are designed for maximum strength, which allows for termination with a standard multi-pair 110/Krone impact tool to reduce installation time. The panels feature a fully enclosed design for protection of printed circuitry during termination. The Signamax Category 5E unshielded patch panels are supplied in black colour.

Technical Parameters

  • Category: CAT5E
  • Highest Supported Protocol: 1000BaseT
  • number of Ports: 48
  • Shielded: No
  • Support Bar: Yes, only with SMB-350
  • Min. Port Life: 1000 cycles
  • Contact Plating: 50 æ gold and 100 æ nickel
  • Termination Module: 110/Krone 8p8c
  • Min. Termination Module Life: 200 terminations
  • Conductor Size: AWG 26 - 22
  • Housing Material: FR acc. to UL94-0
  • Color: Black
  • Unit Size: 2U
  • Height: 88 mm
  • Width: 484 mm
  • Storage Temperature: -40 to 7°C
  • Operational Temperature: -10 to 6°C
  • Max. Operational humidity: 93%
