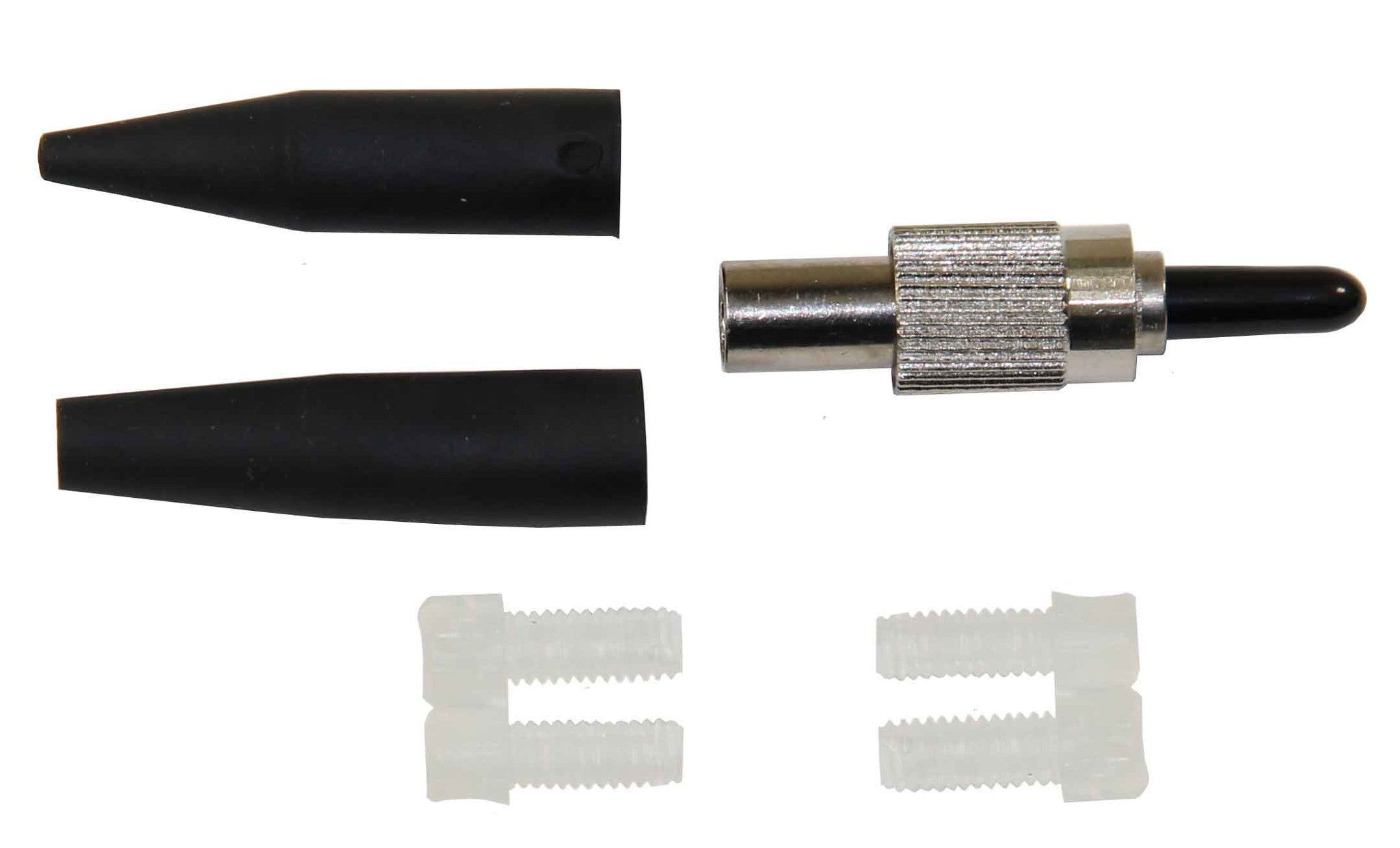

Leviton FC Thread-Lock Connector Single Mode
Move your mouse over image or click to enlarge

Leviton FC Thread-Lock Connector Single Mode

U.S. Tape Part No.: 49883-SFC

  • $ 19.54 or


APPLICATION

Field termination of single mode and multimode fiber optic cable.

STANDARDS COMPLIANCE

Meets or exceeds all applicable standards. Complies with TIA/EIA-568-B; and meets FCC Part 68. Meets industry standards for performance and tensile strength.

PHYSICAL SPECIFICATIONS

Capacity: Singlemode 9/125 micron; Multimode 50/125 micron 62.5/125 micron
Climatic Category: -40/+80 centigrade
Materials: Body - Nickel plated brass; Ferrule - Pre-radiused zirconia ceramic
Loss Specification: .2 dB typical
Mounting: Threaded Nut Coupling

DESIGN CONSIDERATIONS

  • Reusable compression type retention - no epoxy or UV curing.
  • Multiple mating/fully intermateable.
  • Applicable to 3 mm, 900 micron, & 250 micron cable.
  • Insertion loss typical at .20 dB

INSTALLATION NOTES

  • Installation instructions and tightening tool are included in each box of 50 connectors.
  • No special tooling required.
  • A Fiber Optic tool kit is available

Download Leviton FC Thread-Lock connector specification sheet
