APPLICATION
Field termination of singlemode and multimode fiber optic cable.
STANDARDS COMPLIANCE
Meets or exceeds all applicable standards. Complies with TIA/EIA-
568-B. Meets industry standards for performance and tensile
strength.
PHYSICAL SPECIFICATIONS
Capacity: Singlemode: 9/125 micron
Multimode: 50/125 micron and 62.5/125 micron
Climatic Category: -40/+80 centigrade
Materials: Body - Nickel plated brass
Housing - Plastic
Strain-relief boot - Santoprene
Loss Specification: .2 dB typical
Mounting: Push/pull dual latch
DESIGN CONSIDERATIONS
- Reusable compression-type retentionno epoxy or UV cure
- Multiple mating/fully intermateable
- Applicable to 3mm, 900 micron, and 250 micron cable
- Insertion loss typical at .20 dB
- Duplex clips available.
TYPICAL SPECIFICATION

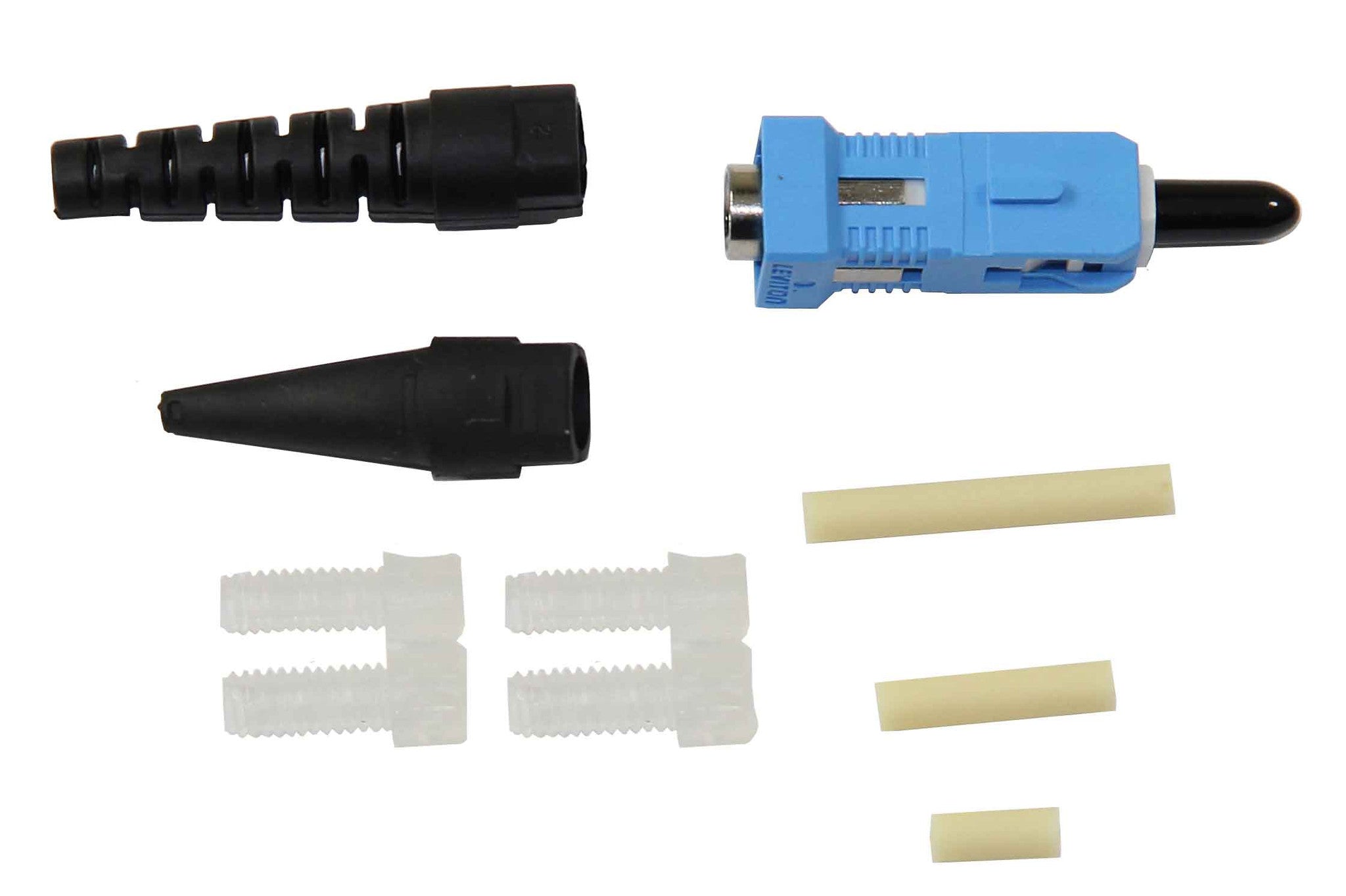

Fiber optic connectors shall be "SC" type with a ceramic ferrule. The connectors shall be field-installable and require no epoxy, heat cure devices or special tooling to facilitate the termination of the fiber. The connector shall be of a design that allows removal and retermination, using the same connector to reduce material waste. The connector shall meet all applicable TIA/EIA standards for fiber optic connector reliability and intermateability. The manufacturer shall provide a one-year limited product warranty and 15 year product performance guarantee. The manufacturer shall provide a lifetime warranty against defects in material and workmanship, and an application guarantee when installed as part of a certified system.
