Overview

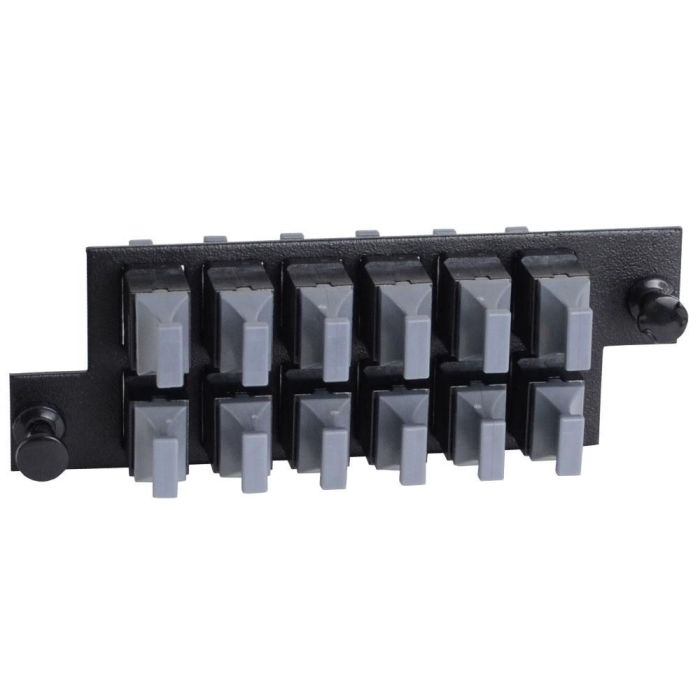

The 4X SHD 6 Pack Adapter Plate is designed to reduce installation time and increase cost efficiency within dense network infrastructures. This compact, modular solution provides a convenient pass-through when connecting multiple trunk cables with MPO connectors.
This adapter plate is built to support high-density cabling environments and is engineered for use with the 1RU 4X Slim High Density Cassette Enclosure (p/n F1RM1RU4XHD). It facilitates rapid deployment in data centers and telecommunications facilities where rack space and cable organization are critical.
Key Features
-
High-Density Design
Features a 6-pack MPO mating sleeve configuration to maximize port density in limited rack space. -
Type A Polarity
Uses Type A (Key Up-Key Down) MPO alignment for standard network mapping requirements. -
Versatile Compatibility
Supports both singlemode and multimode fiber types within the same modular architecture. -
Modular Installation
Designed for tool-less or quick-install mounting into 4X SHD enclosures, reducing maintenance downtime. -
Durable Construction
Finished in a professional black coating for secure identification and integration into standard server cabinets. -
Efficiency Optimized
Simplifies the management of MPO trunk cables, minimizing the risk of slack management issues.
Applications
- Data Center high-speed backbones
- Enterprise LAN/WAN infrastructure
- Telecommunications distribution frames
- High-density fiber optic patching
Compatibility
Enclosures- 1RU 4X Slim High Density Cassette Enclosure (F1RM1RU4XHD)
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1SHDMPO6A |
| Connector Type | MTP/MPO |
| Port Count | 6 Pack |
| Polarity | Type A (Key Up-Key Down) |
| Fiber Compatibility | Singlemode and Multimode |
| Color | Black |
Frequently Asked Questions
What is the polarity of this adapter plate?
This plate is configured as Type A, which corresponds to Key Up-Key Down MPO alignment.
Is this compatible with singlemode fiber?
Yes, the adapter plate is compatible with both singlemode and multimode fiber types.
What enclosure is required for this plate?
It is specifically designed for the 1RU 4X Slim High Density Cassette Enclosure (p/n F1RM1RU4XHD).
How many ports does this plate provide?
It features a 6-pack configuration of MPO mating sleeves.
What is the primary material color?
This model is finished in black.
