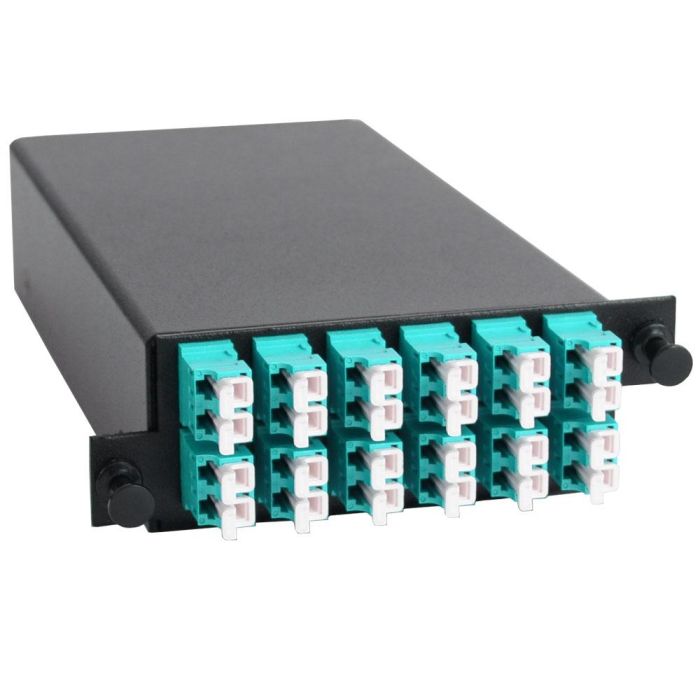

The 4X SHD Breakout Cassette is a compact, modular solution engineered for high-density network infrastructures. It streamlines the transition between high-count multi-fiber MPO trunk cables and standard duplex LC patch cords, significantly reducing installation time and cabling complexity.
Designed for integration into modern data centers, this cassette is compatible with 1RU 4X SHD enclosures, allowing for a total capacity of up to 96 fibers within a single rack unit. Its plug-and-play design ensures efficient deployment, while robust construction provides long-term stability in mission-critical environments.
Key Features
-
High-Density Design
Supports 24 fibers in a single modular cassette to maximize rack space usage. -
Elite Optical Performance
Utilizes premium Elite MTP ferrules to ensure low insertion loss and high network reliability. -
Plug-and-Play Connectivity
Facilitates rapid deployment and reduces labor costs during initial network setup. -
Simplified Cable Management
Organizes internal fiber transitions, creating a cleaner and more manageable patching environment. -
Type B Polarity
Configured for specific network requirements to maintain correct signal routing in parallel optics. -
Factory Tested
Each unit undergoes rigorous optical testing before shipping to guarantee field performance.
Applications
- High-density data center cross-connects
- Enterprise local area networks
- Storage Area Networks (SAN)
- Parallel optics interconnects (10G/40G/100G)
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 Fiber |
| Fiber Type | Multimode OM3/4 |
| Connector A (Front) | (12) Duplex LC/UPC |
| Connector B (Rear) | (1) 24F MPO/Male |
| Polarity | Type B |
| Color | Black |
| Housing Compatibility | 1RU 4X SHD Enclosure |
Frequently Asked Questions
Is this cassette compatible with my existing rack?
This unit is specifically designed for the 4X SHD series of rack mount enclosures.
What does the Type B polarity mean?
Type B polarity defines the fiber mapping sequence for MPO/MTP connectivity, ensuring proper Transmit (Tx) to Receive (Rx) alignment.
Are the LC adapters color-coded?
The unit features standard blue LC adapters for easy identification.
Is the MPO connector pinned?
Yes, this cassette is built with a male MPO connector (pins installed).
Does this support OM3 and OM4 fiber?
Yes, the cassette is compatible with both OM3 and OM4 multimode fiber infrastructures.
