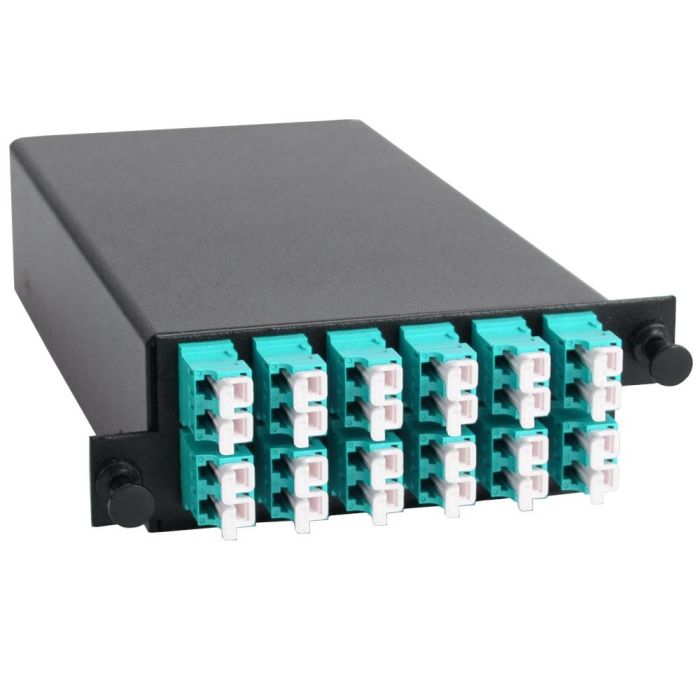

The 4X SHD Breakout Cassette provides a modular, compact solution for high-density network infrastructures, enabling efficient transitions between duplex LC patch cables and multi-fiber MPO trunk cables. Engineered to reduce installation time, this cassette is a critical component for managing high-fiber-count environments.
Designed for use with the 1RU 4X SHD Cassette Enclosure (p/n F1RM1RU4XHD), up to four cassettes can be integrated into a single 1RU rack mount space to support up to 96 fibers. Each unit is constructed with high-grade optical components, including Elite MTP ferrules, and is factory-tested to ensure reliable optical performance and network integrity.
Key Features
-
High-Density Design
Supports up to 96 fibers in a 1RU rack mount footprint when used with the 4X SHD Enclosure, optimizing valuable data center rack space. -
Modular Installation
Plug-and-play architecture allows for rapid deployment and simplified cable management during network upgrades or initial installs. -
Elite Optical Components
Features high-grade MPO/MTP ferrules that ensure minimal signal loss and reliable connectivity across the fiber link. -
Factory Tested
Each unit undergoes rigorous factory testing to verify performance specifications and network reliability before shipment. -
Integrated Identification
Includes removable fiber ID cards and labeled MPO ports for accurate fiber mapping and simplified maintenance. -
Polarity Management
Supports Type B polarity configurations for seamless compatibility with standard multi-fiber trunking systems.
Applications
- Data Center high-density cross-connects
- Enterprise network backbone cabling
- Telecommunications distribution frames
- Plug-and-play network infrastructure migration
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1SHD24OM3/4MT12ELUB |
| Fiber Count | 24 Fiber |
| Fiber Type | OM3/4 Multimode |
| Connector A (Front) | (12) Duplex LC/UPC Adapters, Blue |
| Connector B (Back) | (2) 12F MPO/Male Adapters |
| Polarity | Type B |
| Ferrule Grade | Elite |
| Housing Color | Black |
Frequently Asked Questions
Is the MPO connector pinned or unpinned?
The cassette uses male MPO connectors, meaning they have pins installed.
What is the maximum capacity of the 1RU enclosure?
The 1RU 4X SHD Enclosure supports up to four of these cassettes, providing a maximum of 96 fibers.
Are other colors available?
Yes, the cassette is also available in off-white upon request.
Does this cassette include fiber ID cards?
Yes, each unit features removable fiber ID cards for site-specific labeling.
What type of fiber does this cassette support?
It is optimized for OM3/4 multimode fiber applications.
