Overview

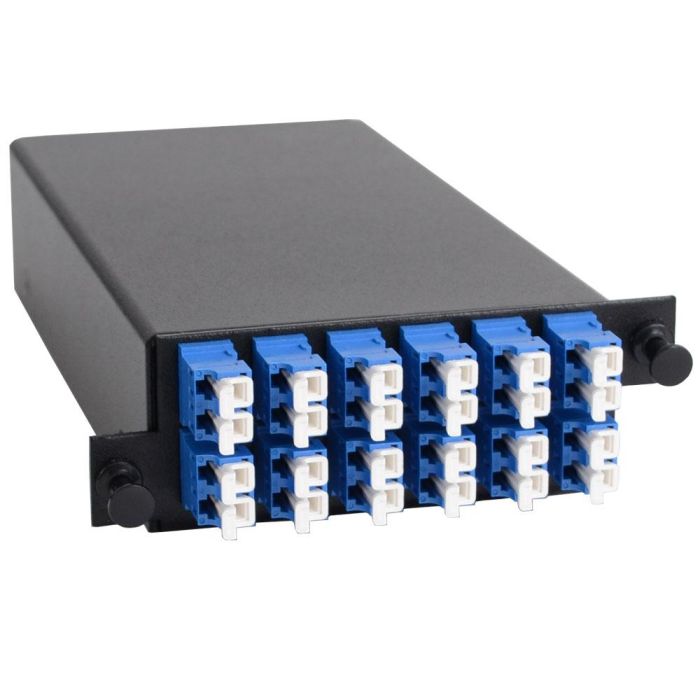

The 4X SHD Breakout Cassette is a high-density, modular solution engineered to reduce installation time and maximize efficiency within dense network infrastructures. It provides a reliable interface for transitioning between duplex LC patch cables and high-count multi-fiber MPO trunk cables, making it ideal for data centers and enterprise environments requiring scalable fiber management.
Designed for integration with the 1RU 4X SHD Cassette Enclosure, this system supports up to 96 fibers in a single rack unit. The cassette is constructed with high-grade optical components, including Elite MTP ferrules, and is factory-tested to ensure performance and network reliability. Each unit features removable fiber ID cards and clearly labeled ports for simplified identification and maintenance.
Key Features
-
High-Density Design
Allows for up to 96 fibers in a 1RU space, maximizing rack real estate. -
Plug and Play
Modular design significantly reduces field installation and configuration time. -
Elite Optical Performance
Equipped with Elite MTP ferrules for precise, low-loss signal transmission. -
Factory Tested
Ensures each unit meets stringent optical standards before deployment. -
Simplified Identification
Includes removable fiber ID cards and labeled MPO ports for easier network management. -
Durable Construction
Manufactured in the USA to high quality standards for long-term consistency.
Applications
- Data center high-density fiber management
- Enterprise network infrastructure
- Transitioning between trunk cables and patch cables
- Central offices and server rooms
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1SHD24OS2MT24ELUA |
| Fiber Count | 24 Fiber |
| Fiber Type | Singlemode (OS2) |
| Connector A | (12) Duplex LC/UPC |
| Connector B | (1) 24F MPO/Male |
| Polarity | Type A (Key Up-Key Down) |
| Color | Black |
| Origin | USA |
Frequently Asked Questions
What enclosure is this cassette compatible with?
This cassette is designed for use with the 1RU 4X SHD Cassette Enclosure (p/n F1RM1RU4XHD).
Is the MPO connector male or female?
The cassette is built with a male MPO connector, meaning it has pins installed.
What is the fiber type for this unit?
This model uses Singlemode OS2 fiber.
Are there other color options available?
Yes, while the standard color is black, it is also available in off-white.
What is the polarity of this cassette?
This unit follows Type A polarity (Key Up-Key Down).
