Overview

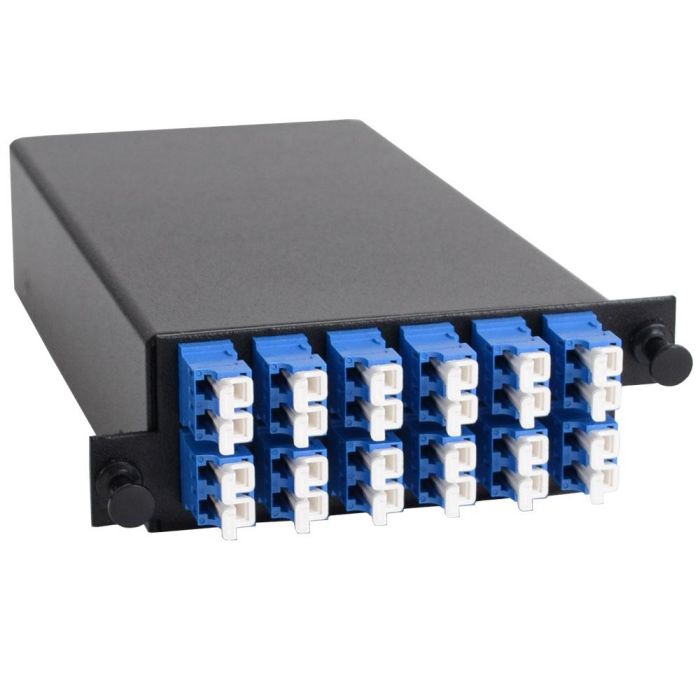

The 4X SHD Breakout Cassette is a high-density, modular solution engineered to facilitate the transition between duplex LC patch cables and multi-fiber MPO trunk cables. By streamlining this connection point, it helps reduce installation time and optimizes space within dense network infrastructures.
Designed for integration with the 1RU 4X SHD Cassette Enclosure (p/n F1RM1RU4XHD), this system allows for a capacity of up to 96 fibers in a 1RU space when fully populated with four cassettes. It is constructed for reliability using high-grade optical components and factory-tested performance standards.
Key Features
-
Modular Design
Enables rapid installation and simplified cable management in high-density environments. -
High-Density Capacity
Supports up to 96 fibers within a single 1RU rack mount space when used with the 4X SHD enclosure system. -
Elite Optical Components
Manufactured with high-grade components, including Elite MTP ferrules, to ensure consistent signal integrity. -
Factory Tested
Each unit undergoes rigorous testing to verify optical performance before shipping. -
Type A Polarity
Features standardized Type A (Key Up-Key Down) polarity for predictable network architecture. -
Integrated Identification
Includes removable fiber ID cards and labeled MPO ports for efficient circuit tracing and maintenance.
Applications
- High-density data center cross-connects
- Enterprise network infrastructure
- Transitioning between backbone trunking and patch-panel distribution
- High-speed fiber optic networking environments
Package Contents
- (1) 4X SHD Breakout Cassette, 24 Fiber
Compatibility
Enclosures- 1RU 4X SHD Cassette Enclosure (F1RM1RU4XHD)
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Mode | Singlemode (OS2) |
| Connector A (Front) | (12) Duplex LC/UPC Adapters |
| Connector B (Rear) | (2) 12-Fiber MPO/Male Adapters |
| Polarity | Type A (Key Up-Key Down) |
| Housing Color | Black |
Frequently Asked Questions
What is the maximum fiber density of this cassette system?
The 4X SHD system supports up to 96 fibers in a 1RU space when using four 24-fiber cassettes.
Does this cassette include MPO connectors with pins?
Yes, this cassette is built with male MPO/MTP connectors, which feature pins installed.
What polarity does this cassette use?
This specific model is configured for Type A (Key Up-Key Down) polarity.
Is this compatible with standard 1RU racks?
It is specifically compatible with the 1RU 4X SHD Cassette Enclosure (p/n F1RM1RU4XHD).
Are the ports labeled?
Yes, the unit includes labeled MPO ports and removable fiber ID cards for identification.
