Dsub 25 Pos Die Cast Hood with Hrdwr & Grommets, Cable Opening .255 To .470 RoHS
Move your mouse over image or click to enlarge

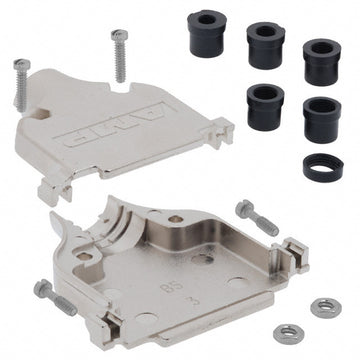

Dsub 25 Pos Die Cast Hood with Hrdwr & Grommets, Cable Opening .255 To .470 RoHS

Suttle Part No.: 5748676-3

  • $ 8.43 or


Features:

  • Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Industry Standards.Lead Free Solder Processes: Not relevant for lead free process
  • Body Features.number of Positions: 25
  • Packaging Features.Packaging Method: Individual Kit
  • Product Type Features.Product Type: Backshell/Cable Clamp
  • Product Type Features.Shell Size: 3
  • Other.Comment: Jackscrews must be purchased separately.
  • All parts are packaged unassembled.
  • Shielded cable clamps will not accept connector housings with clinch nuts.
  • Body Features.Cable Exit Angle: 180
  • Electrical Characteristics.Shielded: Yes
  • Product Type Features.Thread Size: 4 - 40
  • Body Features.Shield Plating: Bright Nickel over Copper
  • Body Features.Cable Clamp Material: Die Cast
  • Product Type Features.Grommets: With
  • Body Features.Long Turnable Jack Screw Part No.: 747784-3
  • Product Type Features.Cable Clamp Type: Two-Piece RFI/EMI Shield
  • Body Features.Cable Insulation Diameter (mm [in]): 6.48 11.94 [0.255 0.470]
  • Product Type Features.number of Grommets Per Set: 6

Product Sheet:
