Overview

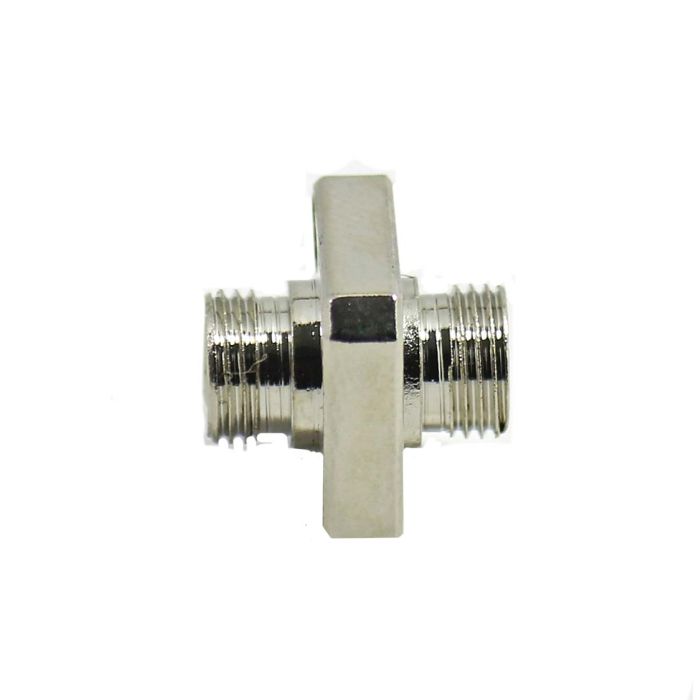

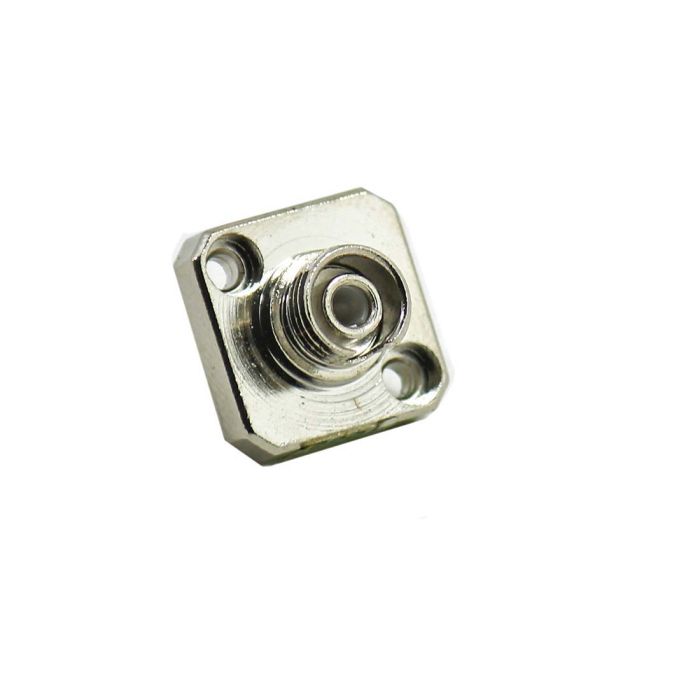

The 5dB FC Bulkhead Attenuator is a precision optical component designed to reduce signal power levels in fiber optic networks operating at the 1550nm wavelength. By utilizing a wavelength-sensitive neutral density filter, this device ensures consistent signal reduction, which is critical for protecting sensitive receiver equipment from saturation and improving overall system link performance.
This bulkhead-style attenuator features a compact design for integration into patch panels or optical distribution frames. Its standard FC connector interface allows for quick and secure installation, making it an essential tool for network engineers and technicians managing signal levels in high-density data center environments or telecommunications infrastructure.
Key Features
-
Wavelength-Sensitive Filtering
Utilizes a neutral density filter specifically calibrated for 1550nm operation to maintain signal integrity. -
Precise Attenuation
Provides a fixed 5dB reduction in signal power, helping to prevent receiver saturation in high-output systems. -
Bulkhead Design
Compact form factor enables direct mounting into standard fiber optic patch panels or enclosures. -
FC Connector Interface
Utilizes the industry-standard threaded FC coupling mechanism for a secure and vibration-resistant connection. -
Practical Deployment
Ideal for quick adjustment of power budgets during network commissioning or troubleshooting. -
Durable Construction
Engineered for long-term use in controlled environments such as central offices and data centers.
Applications
- Telecommunications network power level balancing
- Data center fiber optic link management
- Receiver protection in high-power optical systems
- System commissioning and signal margin testing
Technical Specifications
| Specification | Value |
|---|---|
| Attenuation Value | 5dB |
| Operating Wavelength | 1550nm |
| Connector Type | FC |
| Device Type | Bulkhead Attenuator |
Frequently Asked Questions
What is the primary function of this attenuator?
It is used to reduce the signal power by 5dB in fiber optic links operating at 1550nm to prevent receiver damage or signal distortion.
Can this be used for 1310nm systems?
This specific model is optimized for 1550nm. Using it at other wavelengths may result in inaccurate attenuation values.
Is this a patch cord or a bulkhead device?
This is a bulkhead attenuator, designed to be installed as a feed-through connection within a patch panel or enclosure.
Does this require special tools to install?
No, it uses standard FC threaded interfaces for installation by hand.
What connector type is supported?
This device uses FC connectors.
