Overview

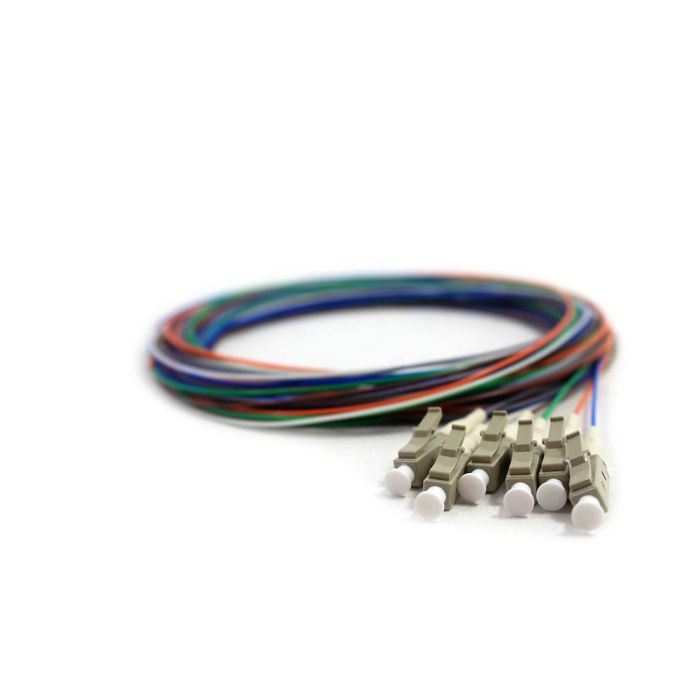

This 6-fiber pigtail pack is designed for high-density fiber splicing applications. Each pigtail features 900um tight-buffered fiber, manufactured using high-quality Corning optical fiber to ensure consistent signal integrity and durability during installation.
The assembly is color-coded according to industry standards, utilizing Blue, Orange, Green, Brown, Slate, and White fibers for rapid identification. These pigtails are intended for use in indoor environments within fiber management enclosures, distribution panels, or splice trays where precision termination is required.
Key Features
-
6-Fiber Configuration
Includes six individual 900um tight-buffered pigtails, allowing for efficient high-count fiber splicing. -
Corning Optical Fiber
Constructed with industry-recognized glass for reliable performance and signal transmission. -
Industry Standard Color Coding
Fibers are colored Blue, Orange, Green, Brown, Slate, and White to simplify installation and cable management. -
Standard 3 Meter Length
Provides sufficient slack for routing within standard patch panels and splice enclosures. -
Low Insertion Loss
Features a maximum insertion loss of 0.4dB to help maintain optical link budgets. -
LC/PC Connector Interface
Utilizes standard LC/PC connectors, ensuring compatibility with common fiber networking hardware.
Applications
- High-density fiber optic splicing
- Patch panel termination
- Optical distribution frames
- Telecommunications infrastructure
- Data center cable management
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 62.5um (OM1) |
| Buffer Size | 900um |
| Connector Type | LC/PC |
| Boot Color | Beige |
| Cable Length | 3 Meters |
| Maximum Insertion Loss | 0.4dB |
Frequently Asked Questions
What is the fiber count of this pigtail pack?
This pack contains 6 individual 900um tight-buffered fibers.
Are these pigtails color-coded?
Yes, the fibers follow standard color coding: Blue, Orange, Green, Brown, Slate, and White.
What type of connector is installed on these pigtails?
These units are pre-terminated with LC/PC connectors.
What is the typical insertion loss?
The maximum insertion loss for these pigtails is 0.4dB.
Can these be used for fusion splicing?
Yes, they are designed specifically for high fiber count fusion splicing applications.
