Overview

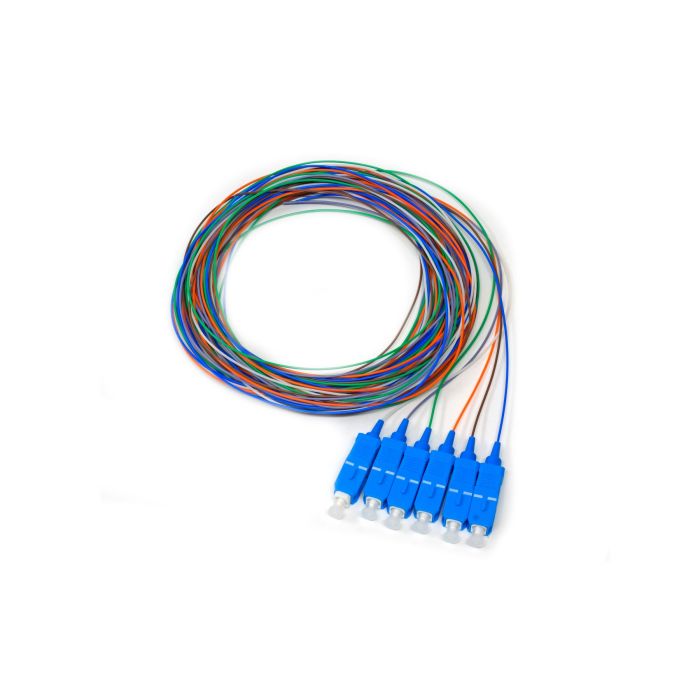

This 6-fiber pigtail set is designed for high-density fiber optic splicing applications. Each assembly features 900um tight-buffered singlemode fiber, providing a reliable and compact solution for terminating loose tube cables within fiber management enclosures or distribution panels.
The pigtails are manufactured using high-quality Corning® fiber and come pre-terminated with SC/UPC connectors. Each fiber is color-coded according to industry standards, facilitating efficient installation and organization in complex network environments.
Key Features
-
Standard Color Coding
Features Blue, Orange, Green, Brown, Slate, and White fibers for quick identification during splicing. -
Corning® Fiber Construction
Uses industry-standard 900um tight-buffered fiber for consistent transmission performance. -
Low Insertion Loss
Engineered with a maximum insertion loss of 0.4dB to ensure signal integrity. -
SC/UPC Connectivity
Pre-terminated with SC/UPC connectors to minimize field termination time. -
Factory Tested
Assemblies are precision manufactured to meet technical requirements for back reflection and loss. -
Optimized for Splicing
Designed specifically for high-count fiber management and splicing trays.
Applications
- Fusion splicing in patch panels
- Fiber management centers
- Central office and headend termination
- Network distribution frames
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Singlemode |
| Buffer Diameter | 900um |
| Connector Type | SC/UPC |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
| Fiber Manufacturer | Corning® |
Frequently Asked Questions
Are these pigtails color-coded?
Yes, the 6-fiber set uses standard color coding: Blue, Orange, Green, Brown, Slate, and White.
What type of fiber is used?
These assemblies use high-quality Corning® 900um tight-buffered singlemode fiber.
What is the maximum insertion loss?
The typical maximum insertion loss for these pigtails is 0.4dB.
Can I order custom lengths?
Please contact us directly for custom fan-out lengths or specific configuration requests.
Are these suitable for fusion splicing?
Yes, these pigtails are designed for high fiber count splicing applications in enclosures and patch panels.
