Overview

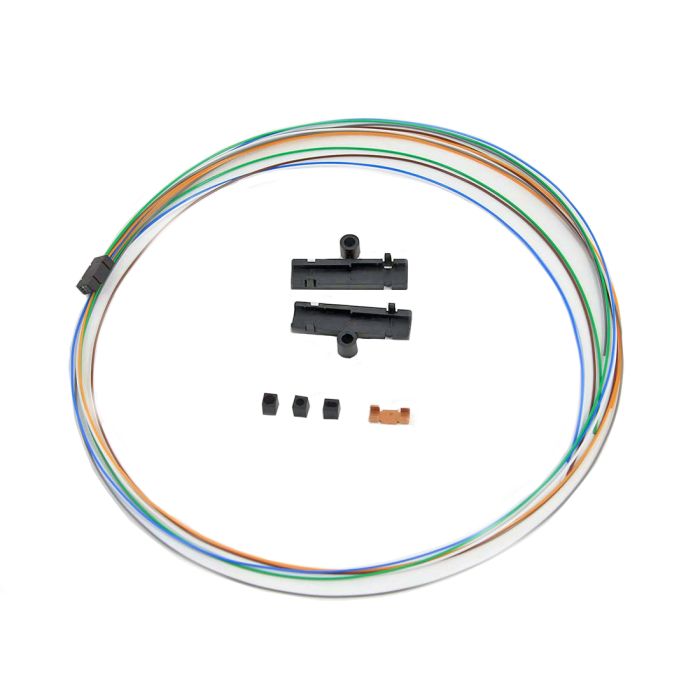

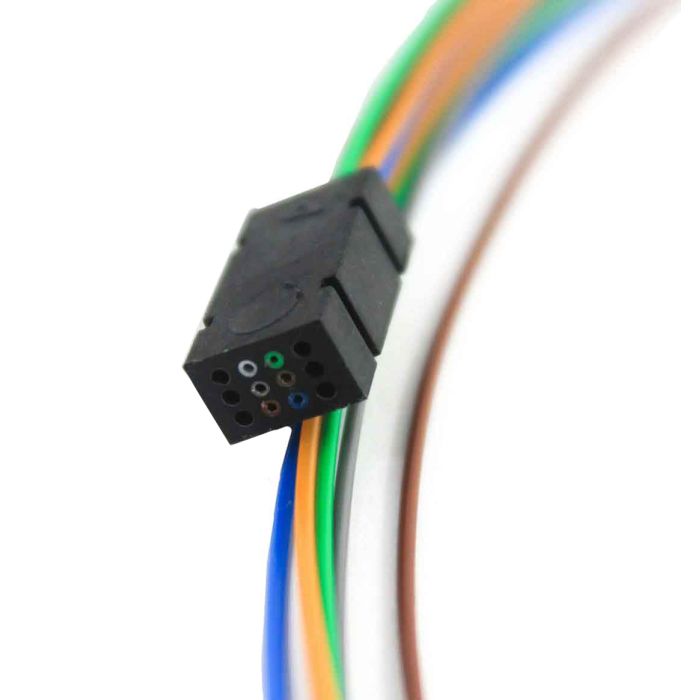

The 6 Fiber Buffer Tube/Ribbon Fan-Out Kit is engineered to provide a simple and efficient method for breaking out standard buffer tubes or ribbon cables into individual 900µm fibers. This kit is specifically designed to facilitate the transition from multi-fiber loose tube or ribbon cable constructions to connectorized fiber pigtails, ensuring an organized and protected fiber path.
Constructed with 25-inch lengths of Hytrel tubing, the kit utilizes industry-standard color coding for clear fiber identification. The assembly features a unique snap-together design, allowing for convenient reentry and maintenance without the need for specialized tools. This versatile kit is compatible with both buffer tubes and ribbon cables, making it an ideal choice for data center and telecommunications environments requiring high-density fiber management.
Key Features
-
Versatile Compatibility
Adapters accommodate both round buffer tubes and ribbon cable configurations. -
Fiber Protection
Features 900µm Hytrel tubing to provide robust protection for exposed fibers. -
Snap-Together Design
Allows for easy installation and convenient reentry for future maintenance or modifications. -
Industry Standard Color Coding
Tubing is pre-colored according to industry standards for rapid, error-free identification. -
Efficient Breakout
Streamlines the termination process for high-fiber-count cable assemblies. -
Pre-Configured Lengths
Includes 25-inch tubing lengths optimized for standard cable management applications.
Applications
- Fiber optic patch panel terminations
- Breakout of loose tube outdoor/indoor cable
- Ribbon cable furcation
- Central office and data center fiber distribution
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1BF0625M |
| Fiber Count | 6 |
| Tubing Length | 25 inches |
| Accepted Fiber Size | 250µm |
| Tubing Outer Diameter | 900µm |
| Material | Hytrel |
| Design | Snap-together (re-enterable) |
Frequently Asked Questions
Is this kit compatible with both ribbon and buffer tube cables?
Yes, the kit includes adapters that allow for use with both round buffer tubes and ribbon cables.
Does the kit allow for reentry?
Yes, the snap-together design allows the unit to be opened for maintenance or adjustment as needed.
What diameter of fiber does this accept?
The kit is designed to accept 250µm fibers.
What is the outer diameter of the fan-out tubing?
The Hytrel tubing provided in the kit is 900µm in diameter.
Are the fan-out tubes color-coded?
Yes, the tubing follows industry-standard color coding for easy fiber identification.
