Overview

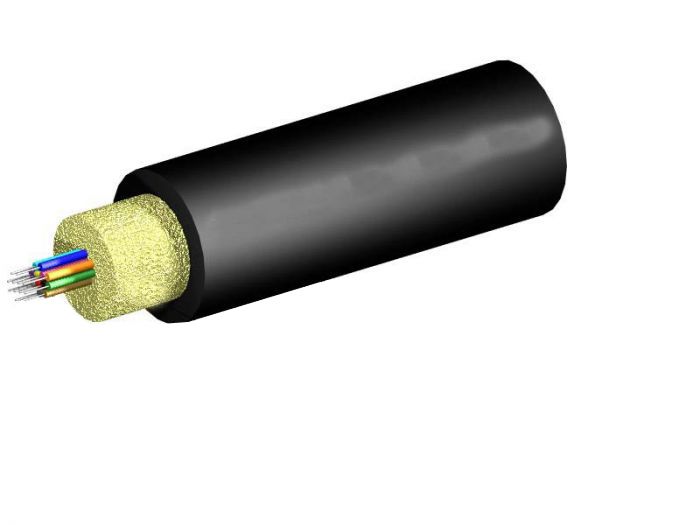

This 6-fiber multimode 62.5um OM1 indoor/outdoor cable features a distribution-style construction and is plenum rated for versatile installation environments. Designed for flexibility and ease of handling, this cable utilizes water-blocking aramid yarn strength members to ensure long-term durability in varied conditions.
The cable is constructed with 900µm tight-buffered fibers, which allow for direct termination of connectors without the need for additional breakout kits, simplifying the installation process and reducing overall labor costs. The rugged, UV-resistant black jacket provides essential protection for both indoor and outdoor use. This specific version includes aluminum interlocking armor (AIA) to offer superior mechanical protection in high-traffic or demanding environments.
Key Features
-
900µm Tight Buffered Fibers
Facilitates direct field termination of connectors, eliminating the need for breakout kits and reducing installation complexity. -
Plenum Rated Jacket
Meets stringent fire safety requirements for installation within building air-handling spaces. -
Indoor/Outdoor Versatility
Dual-purpose design allows for seamless transitions between indoor and outdoor network segments. -
Water-Blocking Aramid Yarn
Provides essential moisture protection and high tensile strength to safeguard the fiber core. -
Aluminum Interlocking Armor (AIA)
Adds a layer of mechanical protection against crushing and impact in rugged use applications. -
UV Resistant Black Jacket
Protects the cable structure from degradation when exposed to sunlight in outdoor environments.
Applications
- Indoor/outdoor campus network backbones
- Plenum-rated building risers
- Demanding environments requiring mechanical protection
- Direct conduit or innerduct installations
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Mode | Multimode (OM1) |
| Core Size | 62.5um |
| Armor Type | Aluminum Interlocking Armor (AIA) |
| Rating | Plenum |
| Outer Diameter | 14.15mm |
| Jacket Color | Black |
Frequently Asked Questions
Can this cable be buried directly?
No, when used in burial applications, this cable must be placed inside a conduit or innerduct.
Is this cable suitable for lashing?
No, this cable is not recommended for lashing applications.
Does this cable require a breakout kit?
No, because it uses 900µm tight-buffered fibers, connectors can be terminated directly onto the fibers without break-out kits.
Is the jacket rated for plenum installations?
Yes, this version is rated for plenum environments.
What is the primary benefit of the armor?
The aluminum interlocking armor provides enhanced protection against physical crushing and impact, making it suitable for rugged applications.
