eXtreme 6+ 24 port Pre-configured
Move your mouse over image or click to enlarge

eXtreme 6+ 24 port Pre-configured

Leviton Part No.: 69586-U24

  • $ 264.08 or

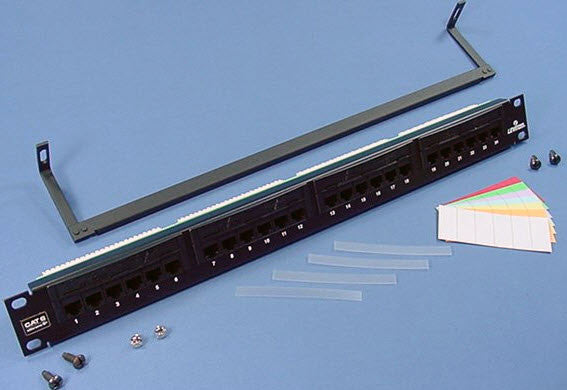

eXtreme 6+ Universal Patch Panel, 24-Port, 1RU, CAT6. Cable management bar included.

APPLICATION

eXtreme CAT 6+ Flat 110-Style Patch Panels are designed for use on 19" standard racks and cabinets. The patch panels include patented Retention Force Technology which promotes consistent performance over the life of the system. Installer-friendly design allows for quick installation due to standard 110 terminations on the rear of the panel which follows the normal installation color sequence (blue, orange, green, brown) from left to right. The eXtreme CAT 6+ system is designed for use in high megabit applications such as Gigabit Ethernet.

SPECIFICATION

The patch panel shall meet or exceed the requirements for Category 6 described in ANSI/TIA-568-C.2 as well as the Class E requirements described in ISO/IEC 11801. The panels shall feature both T568A and T568B wiring configurations, white IDC 110-punchdown modules, mounting standoffs for cable management bars and color-coded front window labeling. The panels shall have universal T568A and T568B wiring card for terminations. The panels shall be made of 16-gauge steel, and shall have a black painted finish with white silk-screening. The plastic elements shall be fire-retardant with a UL flammability rating of 94V-0.

The panel shall be offered in 12-, 24, 48-, 96-port configurations as well as an 89D 12-port configuration. The patch panel shall be configured with six port modules. The 110 termination on the rear of the panel shall follow normal installation color sequence (blue, orange, green, brown) from left to right.

FEATURES

Patented Retention Force Technology protects

tines from damage from 4- or 6-pin plugs

Craft-friendly installation

Universal T568A and T568B wiring cards for

110-style IDC terminations

Color-coded front labeling for easy port identification

(ANSI/TIA-606-B compliant)

Terminates 26-22 AWG solid conductors

Centralized labeling (available on 48-Port) promotes greater

visibility of labels when patch cords are routed into horizontal

cable management above and below the patch panel

Capable of multiple reterminations

DESIGN CONSIDERATIONS

Mounts on 19" equipment racks

Panel offered in 12-, 24-, 48-, 96-Port configurations

and 12-Port U89 Block for wall mount applications

Connector modules are in groups of six

Includes rear cable management bars

Use star washers for grounding in rack mount installations
