Overview

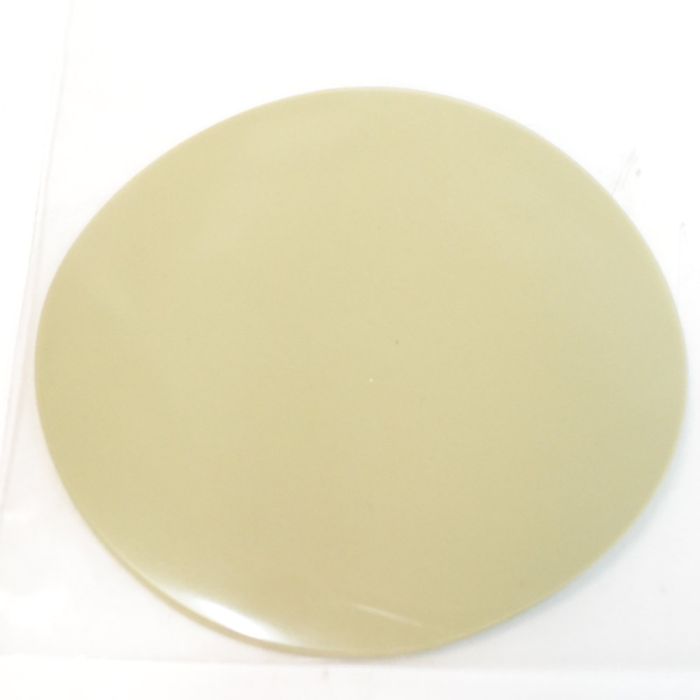

This 6um diamond lapping film is engineered for precision machine polishing of fiber optic connector end faces. Designed for consistent material removal, these 4-inch diameter discs help achieve high-quality surface finishes essential for low-loss fiber optic interconnections.
These discs are constructed with a durable 3 mil backing, providing the necessary stability for machine-based polishing processes. This package includes 10 sheets, intended for industrial environments such as fiber cable assembly houses, repair labs, and data center connectivity production.
Key Features
-
6um Particle Size
Features a 6-micron abrasive grit ideal for intermediate stage connector end-face polishing. -
4-inch Diameter
Standard disc size compatible with most automated fiber optic polishing machines. -
3 Mil Backing
Provides structural support to maintain uniform pressure across the connector surface. -
Non-PSA Design
Plain-back construction simplifies installation and removal from machine platens. -
Industrial Grade
Manufactured for repetitive, consistent results in high-volume polishing environments. -
10-Pack Quantity
Provides an essential supply for regular maintenance and production runs.
Applications
- Fiber optic connector end-face polishing
- Automated connector production
- Connector repair and refurbishment
- Precision optical surface finishing
Technical Specifications
| Specification | Value |
|---|---|
| Abrasive Type | Diamond |
| Grit Size | 6µm |
| Disc Diameter | 4 inch |
| Backing Thickness | 3 mil |
| Adhesive | Plain Back (No PSA) |
| Color | Gray |
| Package Quantity | 10 Sheets |
Frequently Asked Questions
Is this film compatible with my polishing machine?
These 4-inch plain-back discs are designed for universal use with most standard fiber optic polishing machines that utilize matching platen sizes.
Does this film have an adhesive backing?
No, these are plain-back discs and do not feature a Pressure Sensitive Adhesive (PSA).
What stage of polishing is 6um diamond film used for?
6-micron film is typically used in the intermediate polishing stages to remove material after initial grinding and before finer finishing steps.
How many discs are included?
Each package contains 10 individual polishing sheets.
