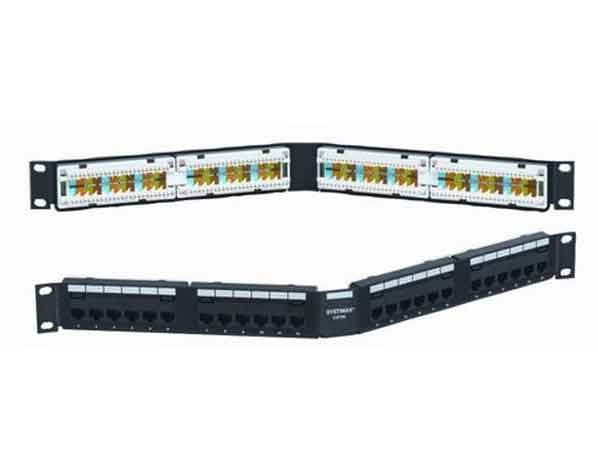

24-Port Cat5e Modular Patch_Panel Angled
Move your mouse over image or click to enlarge

24-Port Cat5e Modular Patch_Panel Angled

CommScope Part No.: 760056580

  • $ 388.05 or

Depth 138.43 mm|5.45 in
Diameter Over Dielectric, maximum 1.168 mm|0.046 in
Diameter Over Dielectric, minimum 0.762 mm|0.030 in
Height 44.45 mm|1.75 in
Width 482.60 mm|19.00 in
Electrical Specifications
ANSI/TIA Category 5e
Current Rating 1.5 A @ 20°C
1.5 A @ 68°F
Dielectric Withstand Voltage, RMS, conductive surface 1500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact 1000 Vac @ 60 Hz
Insulation Resistance, minimum 500 MOhm
Environmental Specifications
Flammability Rating UL 94 V-0
Operating Temperature -10°C to +60°C (+14°F to +140°F)
Relative Hæmidity Up to 95%, non-condensing
Safety Standard cUL|UL
Storage Temperature -40°C to +70°C (-40°F to +158°F)
General Specifications
Total Ports, quantity 24
Cable Type U/UTP (unshielded)
Product Type Panel
Brand PowerSæm|SYSTIMAX?
Color Black
Modules, quantity 4
Package, quantity 1
Rack Type EIA 19 in
Rack Units 1
Mechanical Specifications
Panel Style Angled
Conductor Gauge, solid 22 AWG|24 AWG|26 AWG
Conductor Gauge, stranded 22 AWG|24 AWG|26 AWG
Conductor Type Solid|Stranded (7 strands)
Material Type High-impact, flame retardant, thermoplastic|Powder-coated steel
Outlet/Module Contact Plating Precious metals
Plug Insertion Life, minimum 750 times
Plug Insertion Life, test plug IEC 60603-7 compliant plug
Plug Retention Force, minimum 30 lbf|133 N
Rear Termination Contact Plating Precious metals
Rear Termination Type IDC
Wiring T568A|T568B

Product Sheet:
