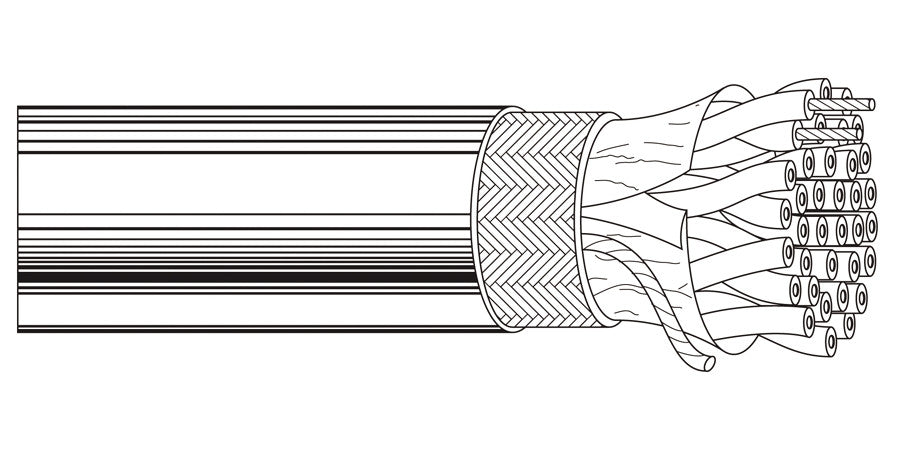

Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232/485 18-Pair 28 AWG FHDPE SH PVC
Move your mouse over image or click to enlarge

Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232/485 18-Pair 28 AWG FHDPE SH PVC

FOSCO (Fiber Optics For Sale Co.) Part No.: 8148-0601000

  • $ 8,268.25 or


Attributes
CONDUCTOR: Gauge (AWG) 28 AWG (AMERICAN WIRE GUAGE)
CONDUCTOR: Count 18 PAIRS
Cond. Type STRANDED CONDUCTOR
Material TINNED COPPER
Plenum: NO IS NOT A PLEnum CABLE
Insulation Material: FPE-FOAMED POLYETHYLENE
SCREEN/SHIELD: YES CABLE HAS SHIELDING
Shield Type BRAID OVER FOIL SHIELD
Construction SPECIAL CONSTRUCTION
JACKETING: Material PVC-POLYVINYL CHLORIDE
Color Code GRAY (SLATE)
SPEC NBR: UL Style UL STYLE, 2919
NEC Rating UL LISTED ART 725 CLASS 2
Temperature Rating: 80 DEGREES CENTIGRADE
Voltage Rating: 30 VOLTS AC
RoHS Compliant: YES
Impedance: 120 OHM NOMINAL IMPEDANCE
_Color Code See Chart 5
No. of Pairs 18
Nom. Vel of Prop. 78%
Vendor No. 8148
Approx. Wt. lb./1,000 ft. 92
Weight lb./1,000 ft. 97.0
Nom. Imped. (ohms) 120
Nom. Capacitance (pF/ft.) 11
Nom. O.D. (in.) 0.467
Unspsc Code 26121613
