Connector, RF coaxial, N in-series adapter, straight plug to plug
Move your mouse over image or click to enlarge

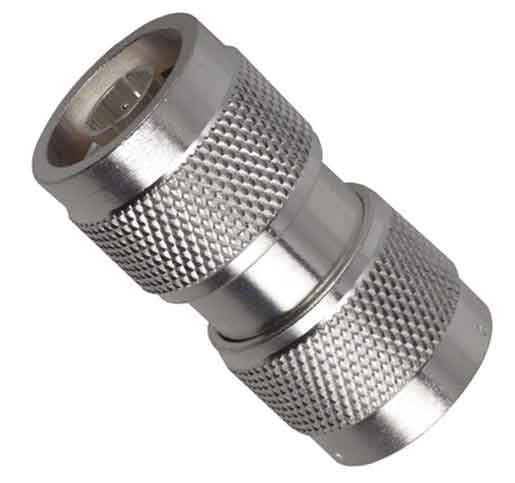

Connector, RF coaxial, N in-series adapter, straight plug to plug

Amphenol Part No.: 82-100

  • $ 15.23 or


Angle : Straight
Application : True MIL
Brand/Series : Type N Connector Series
Contact Plating : Silver
Finish, Housing : Silver
Impedance : 50 Ohms
Material, Contact : Gold Plated Beryllium Copper (Inner), Silver Plated Brass (Outer)
Material, Dielectric : TFE/Styrene
Material, Housing : Brass
Mating Type : Threaded
Primary Type : Adapter
Standards : MIL-STD-202 Specifications, IEC 529 and IP68 (Immersion)
Temperature Range : -40 to +150°C (Operating), -70 to +100°C (Storage)
Type : N Plug-Plug
Voltage, Rating : 1500 V

Product Sheet:
