Multi-Conductor - 10 Base 5 Transceiver 4 20 AWG SHPR SLF Wtih.051"VGM Gray
Move your mouse over image or click to enlarge

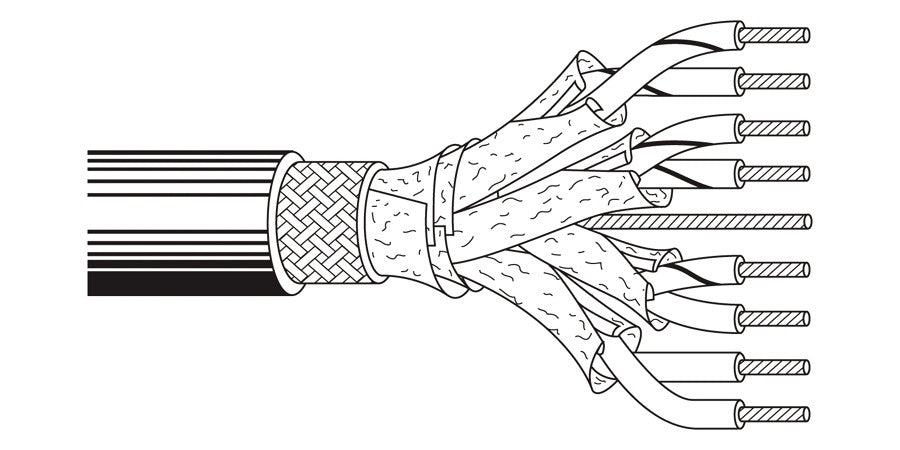

Multi-Conductor - 10 Base 5 Transceiver 4 20 AWG SHPR SLF Wtih.051"VGM Gray

FOSCO (Fiber Optics For Sale Co.) Part No.: 89901-E4X1000

  • $ 9,424.20 or


Attributes
CONDUCTOR: Gauge (AWG) 20 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count 4 PAIRS
Cond. Type STRANDED CONDUCTOR
Material TINNED COPPER
Plenum: YES IS A PLEnum CABLE
Insulation Material: FEP - FLUORINATED ETHYLENE PROPYLENE
SCREEN/SHIELD: YES CABLE HAS SHIELDING
Shield Type FOIL SHIELDED - ALæm/MYLAR
Construction OVERALL & INDIVIDUAL SHIELDS; W/DRAIN
JACKETING: Material PVDF-POLYVINYLIDENE FLUORIDE, KYNAR
Color Code GRAY (SLATE)
SPEC NBR: UL Style UL LSTED WIRE MISC.
NEC Rating UL LISTED ART 800 PLEnum
CSA FLAME RATED
Temperature Rating: 150 DEGREES CENTIGRADE
Voltage Rating: 150 VOLTS AC
RoHS Compliant: YES
Impedance: 78 OHM NOMINAL IMPEDANCE
_NEC Rating CMP
AWG 20 (7x28)
Conductors 4 Pr Stranded TC
Insulation Data: FFEP/Power: FEP+shield/pr
Jacket Color Light gray
Jacket Material PVDF
Shield & Material Foil + 95% TC Braid
Vendor No. 89901
Weight lb./1,000 ft. 99
Imped. Ohms 78
Nom. O.D. (in.) 0.370

Product Sheet:
