Overview

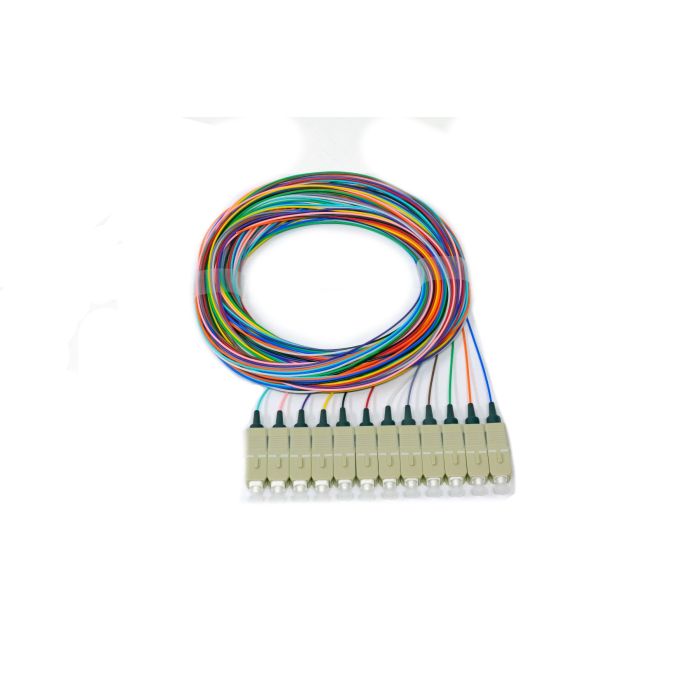

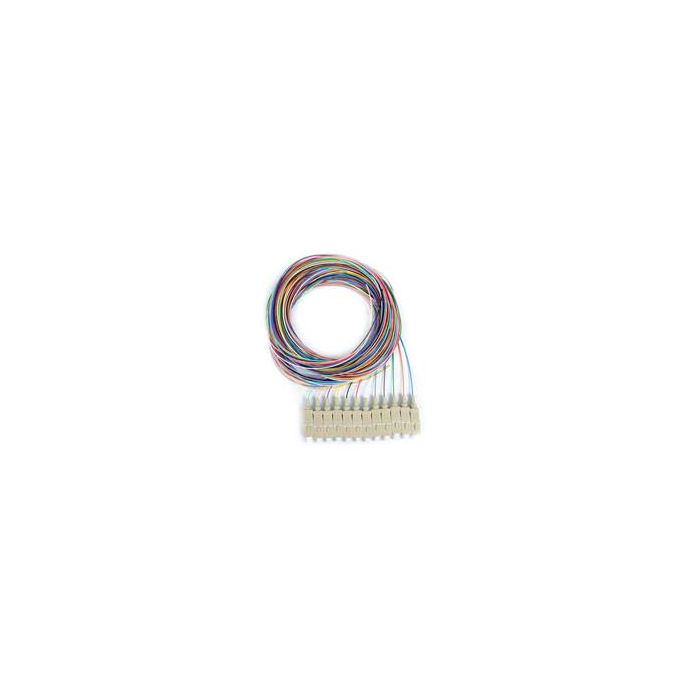

These 12-fiber pigtail packs are engineered for high-density fusion splicing applications in network environments. Each unit features 900um tight-buffered optical fiber, providing a balance of flexibility and protection necessary for efficient cable management within fiber enclosures or patch panels.
Constructed using high-quality Corning® fiber, these pigtails ensure consistent signal integrity and performance. The inclusion of color-coded fibers follows industry standards to simplify the identification process during termination and splicing, reducing installation time and potential errors for network technicians.
Key Features
-
High-Density Compatibility
Designed specifically for high fiber count fusion splicing, facilitating efficient cable organization in patch and splice enclosures. -
Standardized Color Coding
Features industry-standard color coding (Blue, Orange, Green, Brown, Slate, White) to ensure rapid and accurate fiber identification during field installation. -
Corning® Fiber Construction
Manufactured with high-grade optical fiber to ensure consistent transmission performance and long-term network stability. -
Low Insertion Loss
Maintains a maximum typical insertion loss of 0.4dB, supporting high-quality signal paths within the optical network. -
Tight-Buffered Protection
The 900um buffer provides a robust, protected fiber structure, simplifying the stripping and handling process during termination. -
Pre-Terminated Convenience
Supplied with SC connectors and beige boots, eliminating the need for field termination and reducing labor time.
Applications
- Fiber optic distribution frames
- High-density patch and splice cabinets
- Telecommunications and data center cross-connects
- Fusion splicing termination sites
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5um (OM1) |
| Connector Type | SC/PC |
| Fiber Buffer | 900um Tight-Buffered |
| Insertion Loss | 0.4dB Max |
| Length | 3 Meters |
| Boot Color | Beige |
Frequently Asked Questions
Are these pigtails compatible with standard fusion splicers?
Yes, the 900um tight-buffered fiber is compatible with all standard fusion splicing equipment used for field termination.
What is the maximum insertion loss for these pigtails?
The maximum typical insertion loss for this assembly is 0.4dB.
Are the fibers color-coded?
Yes, the fibers follow industry-standard color coding for 12-fiber bundles, including Blue, Orange, Green, Brown, Slate, and White.
Can I order different lengths or connector types?
Yes, please contact our support team for information regarding custom lengths, different connector types, or specific polish requirements.
Is the fiber core glass or plastic?
These are manufactured with Corning® optical fiber, which is standard glass fiber.
