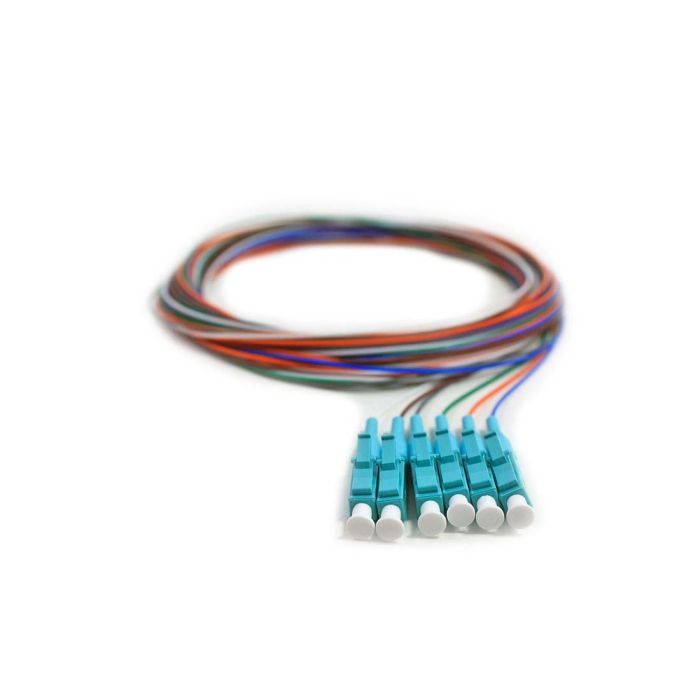

900um Pigtail, 6 Fiber, Multimode 50 um OM3, LC/PC, Aqua Boots, 3 Meters
Roll over image to zoom in Click on image to zoom
900um Pigtail, 6 Fiber, Multimode 50 um OM3, LC/PC, Aqua Boots, 3 Meters

900um Pigtail, 6 Fiber, Multimode 50 um OM3, LC/PC, Aqua Boots, 3 Meters

Fosco ConnectSKU: SP6LCMM50GAQ
Price:
$ 22.08
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

Overview

These 6-fiber pigtail packs feature 50um OM3 multimode fiber, pre-terminated with LC/PC connectors. Designed for high-density fusion splicing applications, these pigtails utilize color-coded 900um tight-buffered fibers to facilitate efficient installation and organization in patch panels and enclosures.

Each pigtail is constructed using high-quality Corning® optical fiber, ensuring consistent transmission performance. The assembly is optimized for environments where low insertion loss and reliable signal integrity are required. The standard 3-meter length is suitable for most rack-mount or wall-mount distribution setups.

Key Features

  • High-Density Ready
    Designed specifically for high fiber count fusion splicing tasks.
  • Corning® Fiber Construction
    Uses industry-standard fiber for dependable optical performance.
  • Color-Coded Buffering
    Includes Blue, Orange, Green, Brown, Slate, and White fibers for quick identification.
  • Low Insertion Loss
    Maximum insertion loss of 0.4dB ensures minimal signal degradation.
  • Standardized LC Interface
    Features industry-standard LC/PC connectors compatible with common patch panels.
  • 900um Tight Buffer
    Provides enhanced protection for the fiber during routing and splicing.

Applications

  • Fiber optic patch panels
  • Optical distribution frames
  • Telecommunications distribution
  • Data center cabling
  • Fusion splicing environments

Technical Specifications

Specification Value
Fiber Count 6
Fiber Type Multimode 50um OM3
Connector Type LC/PC
Insertion Loss 0.4dB Max
Buffer Size 900um
Cable Length 3 Meters
Boot Color Aqua

Frequently Asked Questions

Are these pigtails color-coded?
Yes, the 6-fiber pack includes industry-standard colors: Blue, Orange, Green, Brown, Slate, and White.

What is the maximum insertion loss?
The maximum insertion loss is 0.4dB.

Is the fiber used Corning brand?
Yes, all pigtails are manufactured using Corning® optical fiber.

What is the length of these pigtails?
These units are supplied at a standard length of 3 meters.

Can I order custom fan-out lengths?
Yes, please contact us for inquiries regarding custom specifications or fan-out lengths.
