Overview

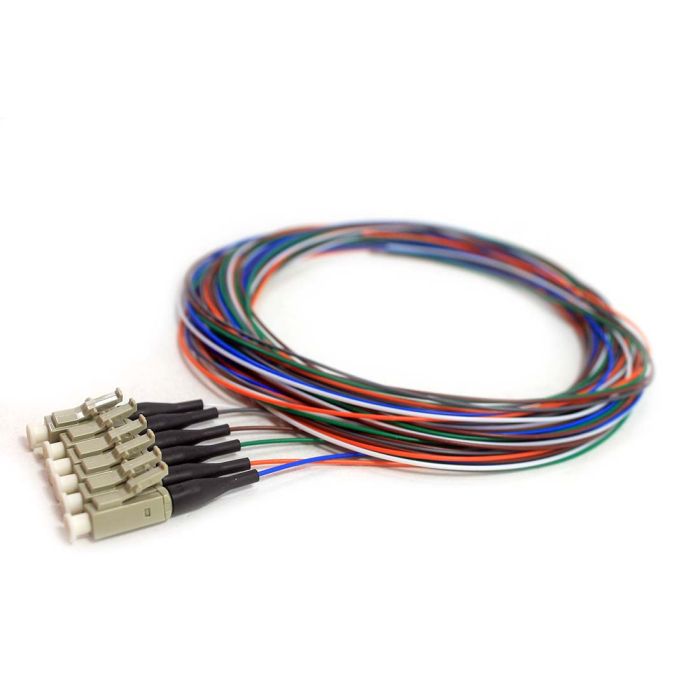

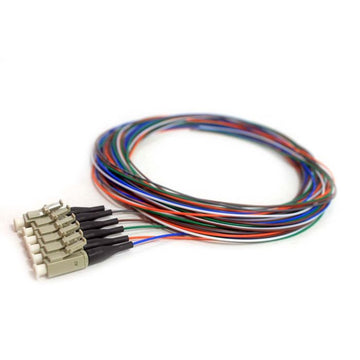

These 6-fiber pigtail assemblies are designed for high-density fusion splicing applications in data centers and telecommunications networks. Each pigtail consists of 900um tight-buffered multimode optical fiber, providing the necessary precision and durability for reliable fiber management and installation.
The assembly features factory-terminated LC connectors, ensuring consistent optical performance for your network connections. Color-coded according to industry standards, these pigtails simplify the installation process, while the compact 900um design makes them ideal for use within patch panels, enclosures, and splice trays.
Key Features
-
Color-Coded Fiber
Features industry-standard color coding (Blue, Orange, Green, Brown, Slate, White) to ensure accurate and efficient fiber identification during splicing. -
Corning® Optical Fiber
Manufactured with high-quality 900um tight-buffered fiber for consistent transmission performance. -
LC Connector Interface
Provides a reliable, space-saving connection for modern network hardware. -
Factory Terminated
Reduces installation time and guarantees performance compared to field-terminations. -
Low Insertion Loss
Maintains a maximum insertion loss of 0.4dB to minimize signal attenuation across the link. -
Compact 900um Design
Ideal for high-density environments, allowing for easier routing within cable management systems.
Applications
- Data Center Infrastructure
- Fiber Optic Splice Trays
- Premise Distribution Networks
- Telecommunications Central Offices
- Network Enclosures and Patch Panels
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 50um OM2 |
| Connector Type | LC |
| Cable Length | 3 Meters |
| Construction | 900um Tight Buffered |
| Max Insertion Loss | 0.4dB |
| Boot Color | Black |
Frequently Asked Questions
Are these pigtails compatible with standard fusion splicers?
Yes, the 900um buffered fibers are designed to be compatible with standard fusion splicing equipment used in the industry.
What is the purpose of the color-coded fibers?
The colors (Blue, Orange, Green, Brown, Slate, White) allow for quick and accurate identification of specific fibers during the splicing process, reducing errors.
Can I order these in custom lengths?
Yes, please contact us for information regarding custom fan-out lengths or specific configurations.
Is the fiber OM2 grade?
Yes, these pigtails are specified as OM2 (50um multimode).
What is the maximum insertion loss?
The typical maximum insertion loss for these pigtails is 0.4dB.
