Overview

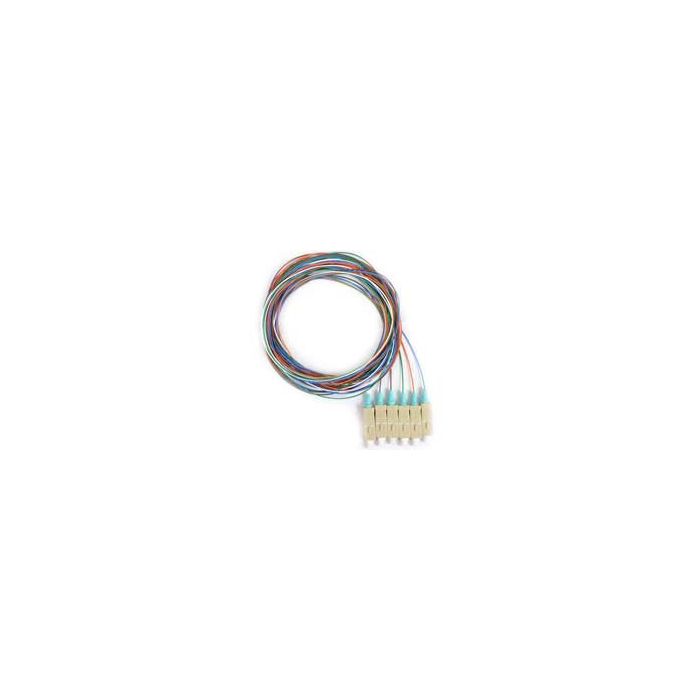

The 900um Pigtail is a high-performance fiber optic assembly featuring 6-fiber construction with 50um OM3 multimode fiber. Designed for high-density fiber splicing applications, these pigtails utilize high-quality Corning® 900um tight-buffered fiber to ensure transmission consistency. Each unit includes SC/PC connectors with aqua-colored boots for clear identification and ease of installation in network environments.
These pigtails are color-coded to industry standards, simplifying the termination process within patch panels and splice trays. With a standard length of 3 meters, they provide ample slack for reliable, low-loss connections in data center, enterprise, and telecommunications infrastructure.
Key Features
-
Corning® Fiber Construction
Manufactured with high-grade 900um tight-buffered fiber for consistent signal integrity. -
Industry Standard Color-Coding
Color-coded fibers (Blue, Orange, Green, Brown, Slate, White) ensure quick and accurate identification during splicing. -
Low Insertion Loss
Features a typical insertion loss of 0.4dB maximum for efficient light transmission. -
High-Density Ready
Designed specifically for multi-fiber splicing environments where space and organization are critical. -
Standard 3 Meter Length
Provides optimal cable management flexibility within enclosures and trays. -
Integrated SC/PC Connectors
Pre-terminated with SC connectors to facilitate rapid plug-and-play installation.
Applications
- Data Center Fiber Management
- Telecommunications Network Splicing
- Enterprise LAN/WAN Networks
- Patch Panel Terminations
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | SP6SCMM50GAQ |
| Fiber Count | 6 |
| Fiber Type | Multimode 50um OM3 |
| Connector Type | SC/PC |
| Cable Diameter | 900um |
| Cable Length | 3 Meters |
| Insertion Loss | 0.4dB Max |
| Boot Color | Aqua |
Frequently Asked Questions
What is the standard fiber color sequence?
The 6-fiber pigtails follow the color sequence of Blue, Orange, Green, Brown, Slate, and White.
Are these pigtails compatible with standard splice trays?
Yes, the 900um tight-buffered construction is industry-standard for use in most fiber management splice trays.
What is the maximum insertion loss?
The typical maximum insertion loss for these assemblies is 0.4dB.
Are other lengths or connector types available?
Yes, please contact us for custom fan-out lengths, alternative connector types, or specific polishing requirements.
What type of fiber is used?
These pigtails are manufactured using high-quality Corning® 900um tight-buffered optical fiber.
