Overview

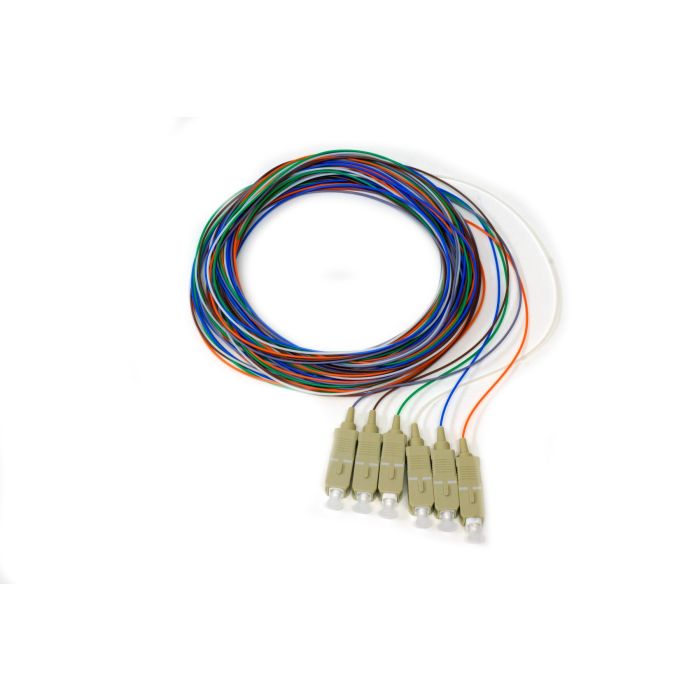

The 900um pigtails are designed for high fiber count splicing applications in environments requiring reliable connectivity. Constructed with Corning® 900um tight-buffered optical fiber, these pigtails ensure consistent performance and durability during installation.

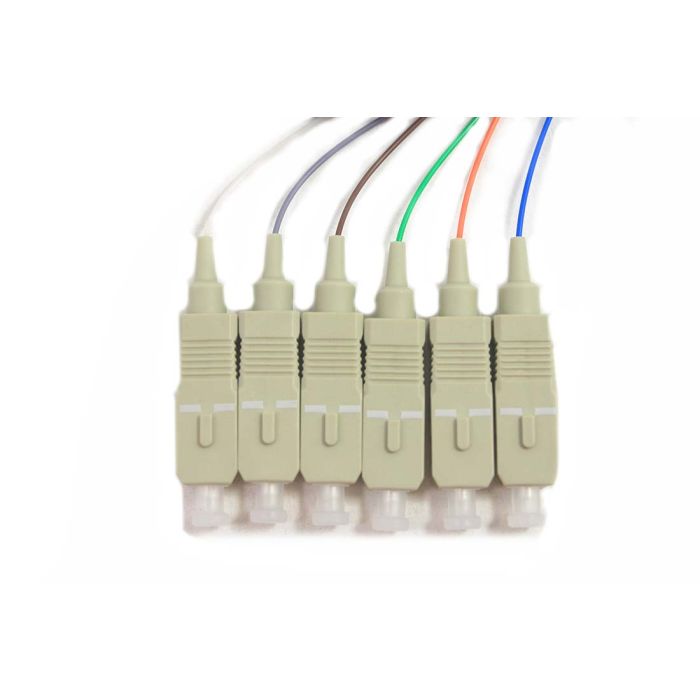

This 6-fiber multimode (62.5um OM1) assembly features SC/PC connectors and color-coded boots, simplifying identification during complex cable management and fusion splicing tasks. The standard 3-meter length provides sufficient slack for routing within enclosures and fiber management panels.
Key Features
-
High-Performance Fiber
Uses authentic Corning® 900um tight-buffered optical fiber to ensure transmission consistency. -
Color-Coded Fibers
Features Blue, Orange, Green, Brown, Slate, and White color coding for quick and accurate installation. -
Optimized Insertion Loss
Maintains a typical maximum insertion loss of 0.4dB for efficient signal integrity. -
Industry Standard Configuration
Features standard SC/PC connectors compatible with most legacy and current fiber management hardware. -
6-Fiber Configuration
Designed for multi-fiber splicing, reducing prep time in high-density applications. -
3-Meter Length
Provides optimal slack for internal rack routing and splice tray management.
Applications
- High fiber count fusion splicing
- Fiber management enclosures
- Patch panels
- Central office and data center cross-connects
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 62.5um (OM1) |
| Connector Type | SC/PC |
| Buffer Size | 900um |
| Cable Length | 3 Meters |
| Maximum Insertion Loss | 0.4dB |
| Boot Color | Beige |
Frequently Asked Questions
Are these pigtails color-coded?
Yes, the 6 fibers follow industry-standard color codes: Blue, Orange, Green, Brown, Slate, and White.
What is the maximum insertion loss?
The typical maximum insertion loss for these pigtails is 0.4dB.
Are custom lengths available?
Yes, please contact support for custom fan-out lengths and specifications.
What kind of fiber is used in these pigtails?
These pigtails are manufactured using Corning® 900um tight-buffered optical fiber.
What connector type is used?
These pigtails are equipped with SC/PC connectors.
