Overview

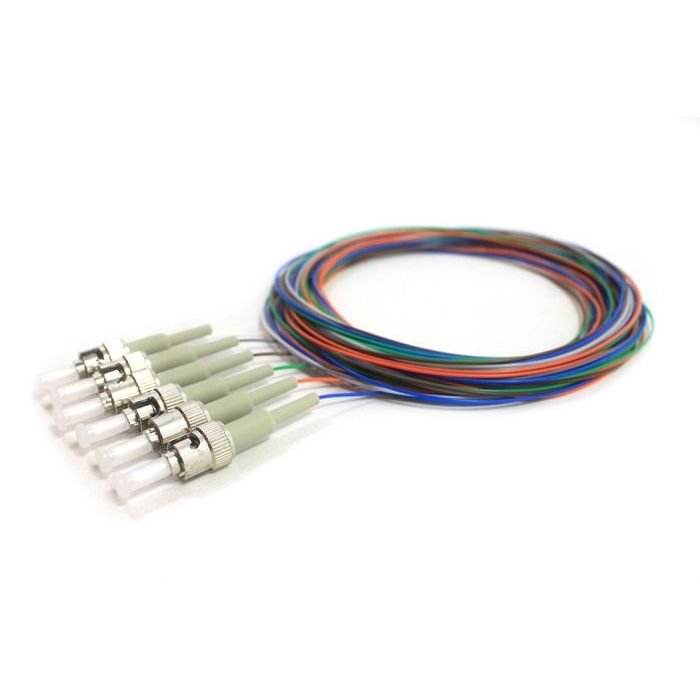

These 900um pigtails are designed for high fiber count splicing applications in telecommunications and data center environments. Featuring Corning® 900um tight-buffered optical fiber, these assemblies ensure compatibility with standard industry fusion splicing equipment.
The 6-fiber configuration is color-coded to industry standards (Blue, Orange, Green, Brown, Slate, and White) to simplify installation and cable management. These pigtails provide reliable optical connectivity with low insertion loss and low back reflection, suitable for integration into patch panels and distribution enclosures.
Key Features
-
Corning® Tight-Buffered Fiber
Manufactured with high-quality 900um tight-buffered fiber for consistent performance. -
6-Fiber Configuration
Designed for efficient, high-count splicing projects. -
Industry Standard Color Coding
Standard color sequence (Blue, Orange, Green, Brown, Slate, White) reduces installation errors. -
Low Insertion Loss
Typical insertion loss of 0.4dB max ensures minimal signal degradation. -
ST/PC Connectors
Features industry-standard ST connectors with beige boots for quick and secure termination. -
3-Meter Length
Standardized length provides sufficient slack for routing within splice trays and enclosures.
Applications
- High-density fiber optic splicing
- Data center rack management
- Telecommunications distribution frames
- Indoor fiber optic enclosures
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 62.5um (OM1) |
| Connector Type | ST/PC |
| Cable Type | 900um Tight Buffered |
| Length | 3 Meters |
| Typical Insertion Loss | 0.4dB Max |
| Boot Color | Beige |
Frequently Asked Questions
What is the color code for these 6-fiber pigtails?
These pigtails are color-coded to industry standards: Blue, Orange, Green, Brown, Slate, and White.
Are these pigtails suitable for fusion splicing?
Yes, the 900um tight-buffered construction is specifically designed for high-density splicing applications.
Can I request custom lengths or different connector types?
Please contact our team for inquiries regarding custom fan-out lengths or different connector configurations.
What type of fiber is used in these assemblies?
These pigtails are manufactured using high-quality Corning® multimode 62.5um (OM1) optical fiber.
What is the maximum insertion loss?
The typical insertion loss is 0.4dB.
