Overview

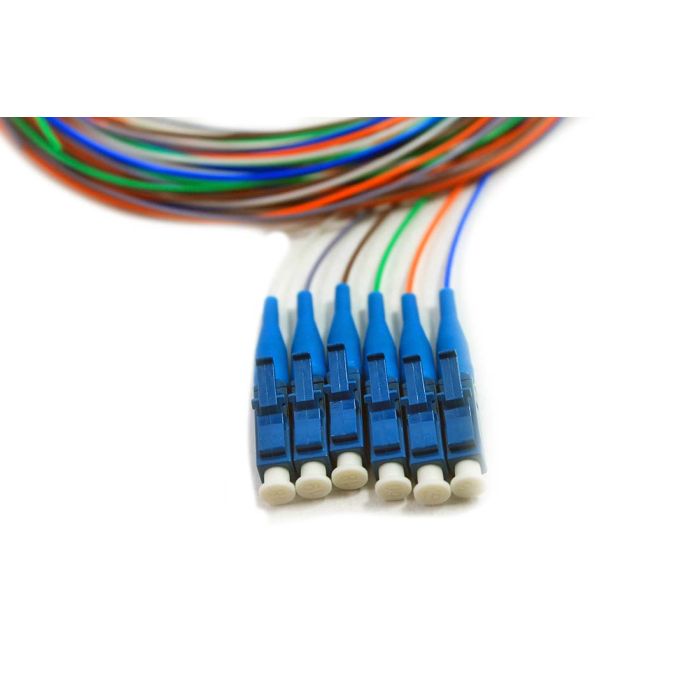

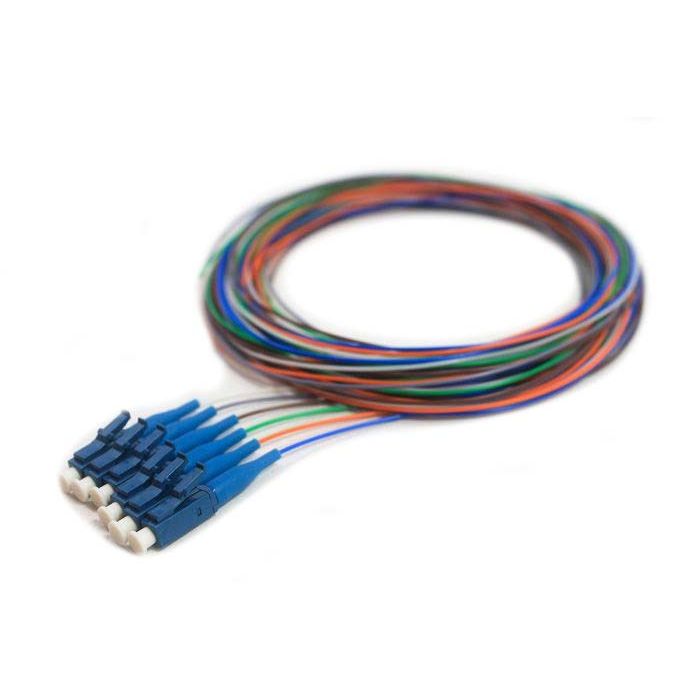

This 6-fiber pigtail assembly is designed for high-density fiber splicing applications. Each assembly features high-quality singlemode fiber with a 900um tight buffer construction, providing a robust solution for terminating fiber optic cables in data centers, telecommunications rooms, and enterprise networks.
The assembly is factory-terminated with LC/UPC connectors, ensuring consistent optical performance and reducing installation time compared to field-termination methods. The individual fibers are color-coded to industry standards, facilitating rapid and accurate identification during the fusion splicing process.
Key Features
-
6-Fiber Configuration
Bundled 6-fiber design optimized for high-count splicing efficiency. -
LC/UPC Connectors
Standard small form factor interface with UPC polish for reliable signal connectivity. -
900um Tight Buffer
Provides enhanced mechanical protection for the fiber core during handling. -
Color-Coded Fibers
Standardized color sequencing (Blue, Orange, Green, Brown, Slate, White) simplifies network integration. -
Low Insertion Loss
Features a typical insertion loss of 0.4dB maximum for high-fidelity signal transmission. -
Corning Fiber
Manufactured using industry-standard Corning glass for long-term transmission stability.
Applications
- Fusion splicing in fiber management enclosures
- Data center cross-connects
- Telecommunications distribution frames
- High fiber count network infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Singlemode |
| Buffer Diameter | 900um |
| Connector Type | LC/UPC |
| Length | 3 Meters |
| Insertion Loss | 0.4dB (Max) |
| Boot Color | Blue |
Frequently Asked Questions
Are these pigtails compatible with all fusion splicers?
Yes, the 900um tight buffered fiber is standard and compatible with all major fusion splicing platforms.
Can I order these in custom lengths?
Please contact our sales team to discuss custom length requirements.
What is the fiber color sequence?
The fibers follow industry standard: Blue, Orange, Green, Brown, Slate, and White.
Are the connectors pre-polished?
Yes, these are factory-terminated UPC connectors.
What is the maximum insertion loss?
The maximum insertion loss is 0.4dB.
