Overview

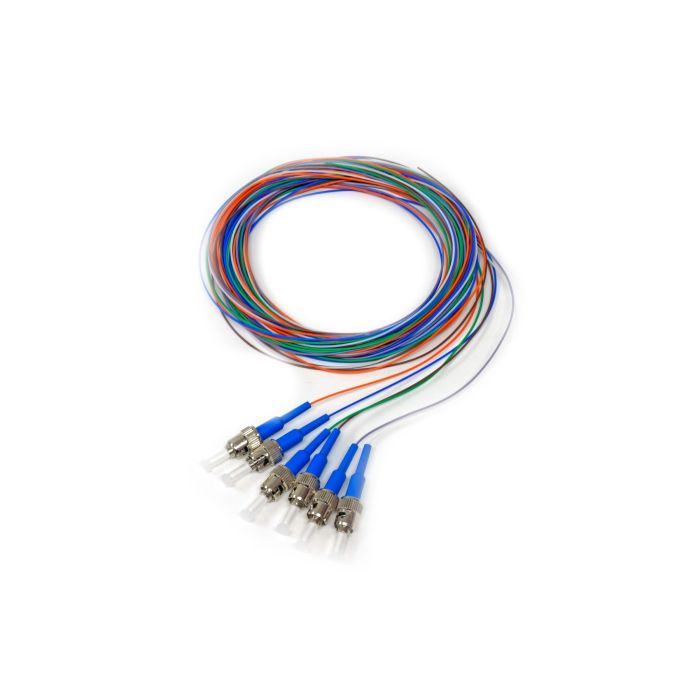

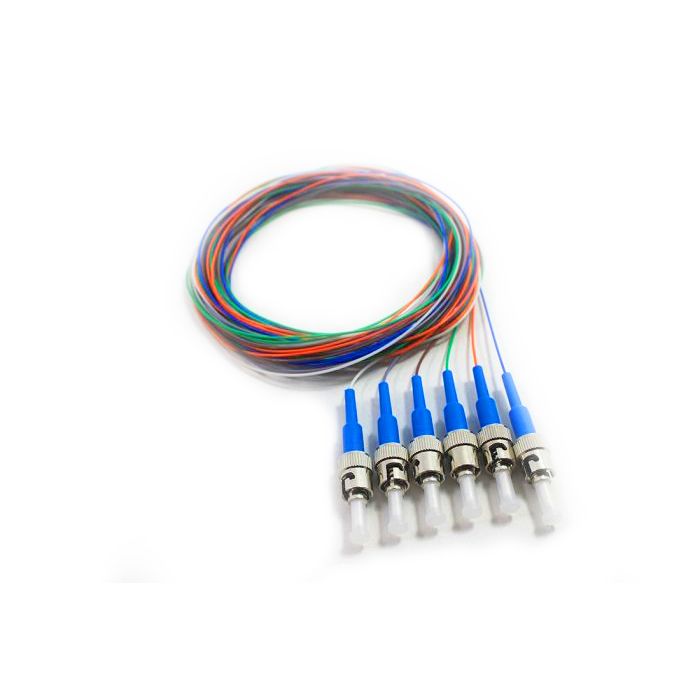

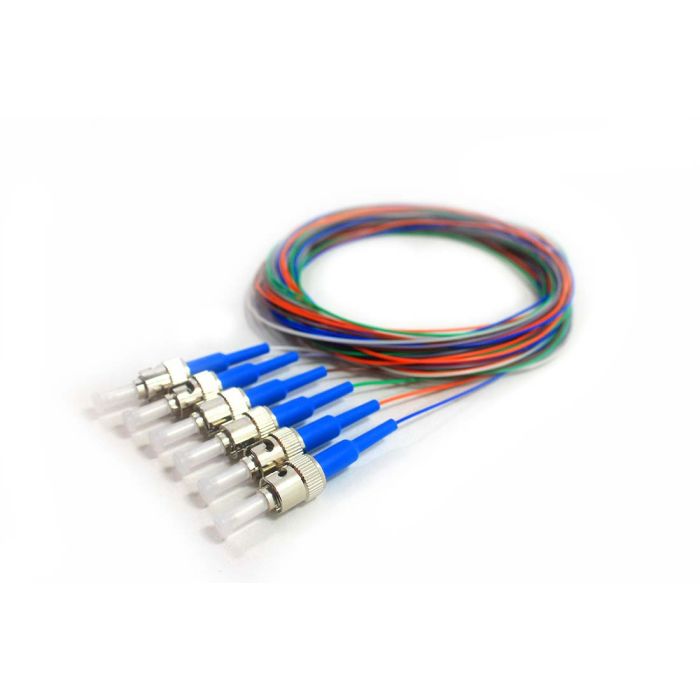

This 6-fiber pigtail assembly is designed for high fiber count fusion splicing applications in data centers, telecommunications rooms, and enterprise networks. It utilizes 900um tight-buffered optical fiber for enhanced protection during handling and termination, while maintaining the flexibility required for routing within fiber enclosures and patch panels.
Each assembly features factory-terminated ST/UPC connectors with blue boots, ensuring consistent optical performance. The pigtails are color-coded according to industry standards, facilitating efficient identification and installation. Each unit is provided in a 3-meter length, suitable for standard rack-mount and wall-mount enclosure configurations.
Key Features
-
6-Fiber Configuration
Provides a high-density solution for multiple fiber management and splicing needs in a single kit. -
900um Tight-Buffered Fiber
Offers improved durability and cable handling compared to bare fiber during the splicing process. -
Standard Color Coding
Features Blue, Orange, Green, Brown, Slate, and White color-coded fibers for simple identification. -
ST/UPC Connector Interface
Ensures compatibility with standard ST-style distribution equipment and patch panels. -
Optimized Insertion Loss
Features a maximum insertion loss of 0.4dB for stable signal integrity across the connection. -
Corning Fiber Construction
Built using industry-standard optical fiber to ensure transmission quality.
Applications
- Data Center fiber management
- Telecommunications distribution frames
- Fiber optic splice enclosures
- Enterprise LAN/WAN networking
- High-count fusion splicing projects
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Singlemode |
| Connector A | ST/UPC |
| Cable Length | 3 Meters |
| Buffer Diameter | 900um |
| Insertion Loss | 0.4dB (Max) |
Frequently Asked Questions
Are these pigtails color-coded?
Yes, the 6-fiber pigtails follow standard industry coloring: Blue, Orange, Green, Brown, Slate, and White.
What is the maximum insertion loss?
The typical maximum insertion loss for these pigtails is 0.4dB.
Can I use these for fusion splicing?
Yes, they are specifically designed for high fiber count fusion splicing applications.
What is the fiber type?
These are singlemode fiber optic pigtails.
What connector type is used?
The connectors are ST/UPC type.
