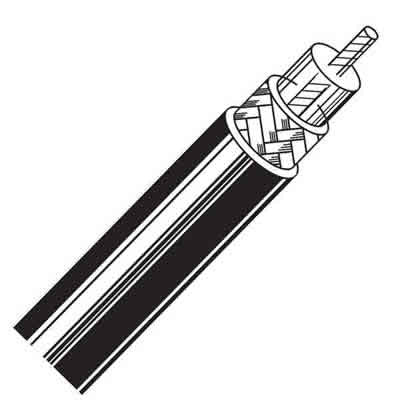

Coax - RG-8/U Type 13 AWG PE BRD PVC Black
Move your mouse over image or click to enlarge

Coax - RG-8/U Type 13 AWG PE BRD PVC Black

FOSCO (Fiber Optics For Sale Co.) Part No.: 9251-0101000

  • $ 2,691.06 or


RG-8/U type, 13 AWG stranded (7x21) .085" bare copper conductor, polyethylene insulation, bare copper braid shield (97% coverage), non-contaminating PVC jacket

Coax Type: RG 8
Impedance: 52 OHM NOMINAL IMPEDANCE
Plenum: GENERAL PURPOSE (CM, CMG, CMX)
Conductor: AWG 13 GAUGE AWG
CONDUCTOR: Type STRANDED CONDUCTOR
Material BARE COPPER
DIELECTRIC: Material PE-POLYETHYLENE (SOLID)
Braid % 97% BRAID COVERAGE
Braid Matl TINNED COPPER
SCREEN/SHIELD: Type DOUBLE BRAID SHIELD
JACKETING: Material PVC-POLYVINYLCHLORIDE, PVC-1
Outdoor NO NOT OUTDOOR GRADE MATERIAL
Flooded NO NOT FLOODED OVER BRAID
SPEC/STND: NEC NOT LISTED BY UL UNDER NEC
RoHS Compliant: YES
Coax Construction: TWINAXIAL
CONDUCTOR: Diameter 0.046 INCHES
_NEC Rating CMX
Conductor Type 13 AWG Str (7x21) BC
Dielectric Type/Jkt. PE/PVC (non-contam.)
Rating CMX
Shield 97% BC Braid
Shield Coverage 97% BC Braid
RG Type RG8
Vendor Belden
Conductor Stranding/Dia. AWG & Type 7/0.085/13/BC
Notes/Special Features -----
Approx. Wt. lb./1,000 ft. 115
Imped. Ohms 52
Insulation Material (O.D. in.) PE/0.285
Jacket Material Color (O.D. in.) NC-PVC/BLK/0.405
Nom. O.D. (in.) 0.405
Unspsc Code 26121606

Product Sheet:
