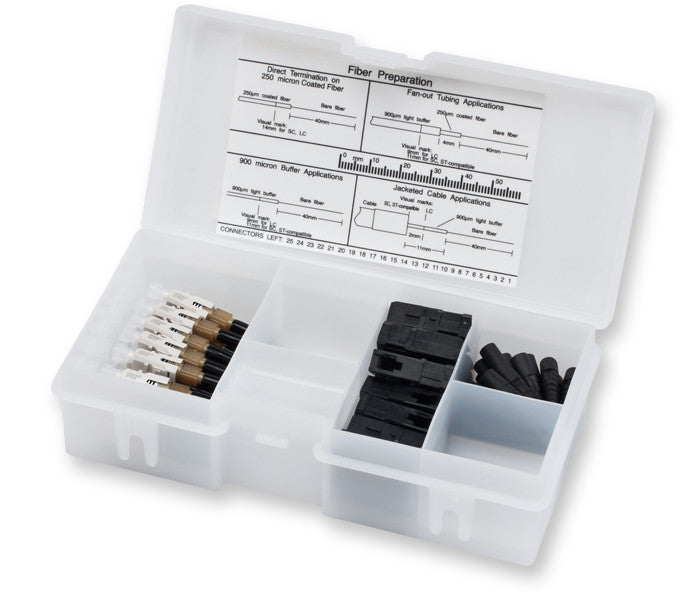

UniCam Standard-Performance Connector, SC, 50 µm multimode (OM2), ceramic ferrule, organizer pack
Move your mouse over image or click to enlarge

UniCam Standard-Performance Connector, SC, 50 µm multimode (OM2), ceramic ferrule, organizer pack

Corning Cable Systems Part No.: 95-050-40-Z

  • $ 389.06 or
  • per pack


Standards

Approval and Listings Passed EIA/TIA 568-B.3
Intermateability Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20

General Specifications

Product Type Field-Installable Connectors
Technology No-Epoxy/No-Polish
Keyed No
Corning Logo Yes
Packaging Organizer Pack
Fiber Category 50 µm MM (OM2)

Temperature Range

Operation -40°C to 75°C exceeding EIA/TIA 568-B.3 (-40°F to 167°F exceeding EIA/TIA 568-B.3)

Design - Connector

Connector Type SC
Ferrule Ceramic
Housing Material Composite
Housing Color Black
Boot Color Black

Mechanical Specifications - Connector

Durability ? 0.2 dB change by 500 rematings, FOTP-21
Temperature Cycling ? 0.3 dB IL, -4° to +7°C, 21 cycles
Nominal Fiber Outer Diameter 125 µm
Tensile Strength Jacketed Cable 50 N, change ? 0.2 dB, FOTP-6 (11 lb, change ? 0.2 dB, FOTP-6)
Tensile Strength 900æ Cable 4.9 N, change ? 0.2 dB, FOTP-6 (1.1 lb, change ? 0.2 dB, FOTP-6)

Optical Specifications - Connector

Insertion Loss, Typical 0.3 dB
Insertion Loss, Max. 0.75 dB
Reflectance ? -26 dB

Chemical Characteristics

RoHS Free of hazardous substances according to RoHS 2002/95/EG

Shipping Information

Units per Delivery 25/1
Package Contents 25 connectors, 25 shrouds, 25 boots (900 µm)
Product Sheet:
