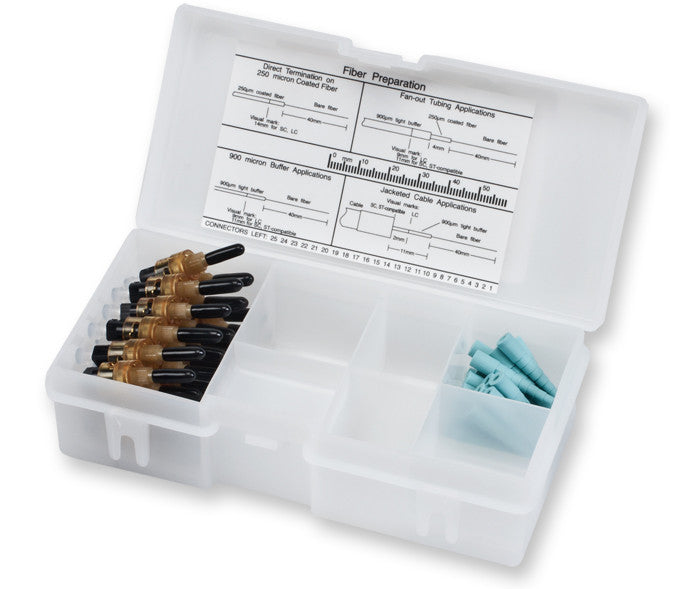

UniCam Connector, ST, Organizer Pack, 50 µm multimode (OM3/OM4) Laser Optimized
Move your mouse over image or click to enlarge

UniCam Connector, ST, Organizer Pack, 50 µm multimode (OM3/OM4) Laser Optimized

Corning Cable Systems Part No.: 95-050-51-X-Z

  • $ 530.57 or
  • per pack


Standards

Approval and Listings Compliant with EIA/TIA 568-B.3
Intermateability Connectors are FOCIS compliant with TIA/EIA 604-3 and IEC61754-4

General Specifications

Technology No-Epoxy/No-Polish
Keyed No
Product Type Field-Installable Connectors
Packaging Organizer Pack
Corning Logo Yes
Fiber Category 50 µm MM (OM3/OM4 compatible)

Temperature Range

Operation 0°C to 60°C , meets TIA/EIA 568-B.3 (32°F to 140°F , meets TIA/EIA 568-B.3)

Design - Connector

Connector Type ST Compatible
Ferrule Ceramic
Housing Material Composite
Housing Color Amber
Boot Color Aqua

Mechanical Specifications - Connector

Durability 0.2 dB change by 500 rematings, FOTP-21
Nominal Fiber Outer Diameter 125 µm
Tensile Strength Jacketed Cable 50 N, change 0.2 dB, FOTP-6 (11 lb, change 0.2 dB, FOTP-6)
Tensile Strength 900æ Cable 4.9 N, change 0.2 dB, FOTP-6 (1.1 lb, change 0.2 dB, FOTP-6)

Optical Specifications - Connector

Insertion Loss, Typical 0.1 dB
Insertion Loss, Max. 0.5 dB
Reflectance -26 dB

Chemical Characteristics

RoHS Free of hazardous substances according to RoHS 2002/95/EG

Shipping Information

Units per Delivery 25/1
Package Contents 25 connectors, 25 boots (900 µm)
