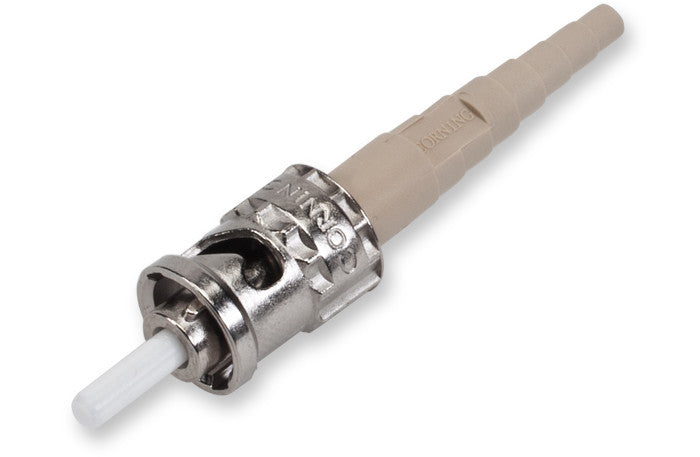

ST Compatible Connector, 62.5µm multimode (OM1), ceramic ferrule, metal hardware, single pack
Move your mouse over image or click to enlarge

ST Compatible Connector, 62.5µm multimode (OM1), ceramic ferrule, metal hardware, single pack

Corning Cable Systems Part No.: 95-101-52-SP

  • $ 6.63 or


Standards

Intermateability Compliant with TIA/EIA 604-2

General Specifications

Technology Field Polish (anaerobic)
Keyed No
Packaging Single Pack
Product Type Field-Installable Connectors
Corning Logo Yes
Fiber Category 62.5 µm MM (OM1)

Design - Connector

Connector Type ST Compatible
Ferrule Ceramic
Housing Material Metal
Housing Color Metal
Boot Color Beige

Mechanical Specifications - Connector

Temperature Cycling 0.3 dB IL, -40ø to +75øC, 21 cycles

Optical Specifications - Connector

Insertion Loss, Typical 0.2 dB
Insertion Loss, Max. 0.75 dB
Reflectance -26 dB

Chemical Characteristics

RoHS Free of hazardous substances according to RoHS 2002/95/EG

Shipping Information

Units per Delivery 1/1
Package Contents Connector, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 µm), Boot (2.0 mm), Boot (3.0 mm)
