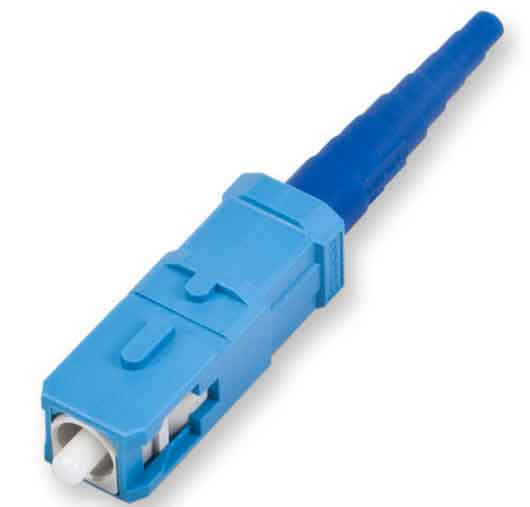

UniCam High-Performance Connector, SC, Single-mode (OS2), ceramic ferrule, blue

Corning Cable Systems Part No.: 95-200-41

  • $ 33.50 or


Approval and Listings Passed EIA/TIA 568-B.3
Intermateability Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20

General Specifications

Product Type Field-Installable Connectors
Technology No-Epoxy/No-Polish
Keyed No
Corning Logo Yes
Packaging Single Pack
Fiber Category Single-mode (OS2)

Temperature Range

Operation -40°C to 75°C exceeding EIA/TIA 568-B.3 (-40°F to 167°F exceeding EIA/TIA 568-B.3)

Design - Connector

Connector Type SC
Ferrule Ceramic
Housing Material Composite
Housing Color Blue
Boot Color Blue

Mechanical Specifications - Connector

Durability ? 0.2 dB change by 500 rematings, FOTP-21
Temperature Cycling ? 0.3 dB IL, -4° to +7°C, 21 cycles
Nominal Fiber Outer Diameter 125 æm
Tensile Strength Jacketed Cable 44 N, change ? 0.2 dB, FOTP-6 (11 lb, change ? 0.2 dB, FOTP-6)
Tensile Strength 900æ Cable 4.9 N, change ? 0.2 dB, FOTP-6 (1.1 lb, change ? 0.2 dB, FOTP-6)

Optical Specifications - Connector

Insertion Loss, Typical 0.2 dB
Insertion Loss, Max. 0.5 dB
Reflectance ? -55 dB
Polish UPC

Chemical Characteristics

RoHS Free of hazardous substances according to RoHS 2002/95/EG

Shipping Information

Units per Delivery 1/1
Package Contents Connector, shroud, crimp band, boot (900 æm), boot (3.0 mm)

Product Sheet:
