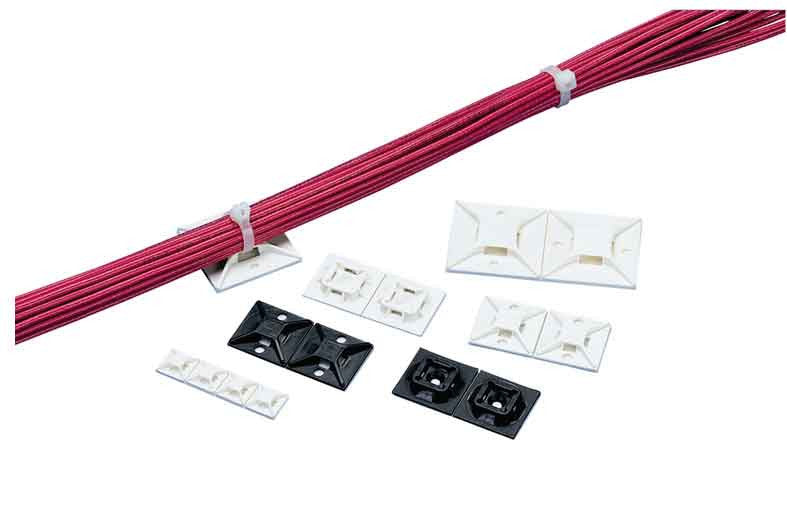

4-Way Adhesive Backed Cable Tie Mount Acrylic Outd/High Temp 1" X 1" X0.2" Black 500/pk
Move your mouse over image or click to enlarge

4-Way Adhesive Backed Cable Tie Mount Acrylic Outd/High Temp 1" X 1" X0.2" Black 500/pk

Panduit Part No.: ABM2S-AT-D0

  • $ 370.00 or
  • per pack


Features:

  • Superior adhesive for long term reliability
  • 2-up mount configuration speeds liner removal and installation
  • 4-way cable tie entry makes part orientation fast and easy
  • Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
  • Used with Panduit cable ties for a complete wire routing solution

Specifications:

Part number ABM2S-AT-D0
RoHS Compliancy Status Compliant
Part Description 4-Way Adhesive Backed Cable Tie Mount
Product Type Cable Tie Mounts - Adhesive Backed
Material Weather Resistant ABS
Color Black
UL Recognized E136577
Height (In.) 0.16
Height (mm) 4.2
Length (In.) 1.00
Length (mm) 25.4
Width (In.) 1.00
Width (mm) 25.4
Adhesive Type Acrylic
CE Compliant Yes
Environment Outdoor/High Temp
Max. Bundle Diameter (mm) 4.8
Max. Continuous Use Temperature 180øF (82øC)
Max. Static Load (g) 227
Max. Static Load (Lbs.) 0.50
Mounting Method Acrylic Adhesive Tape
Pricing Description Cable Tie Mount, Hi Tmp. Adh., 1"x1" (25.4mm x 25.4mm), WRBL
Screw Size #6 (M3)
Screw Size Metric M3
Sub Brand Cable Tie Mount
Temperature Range 180øF (82øC)
Type Adhesive Backed

Product Sheet:
