Overview

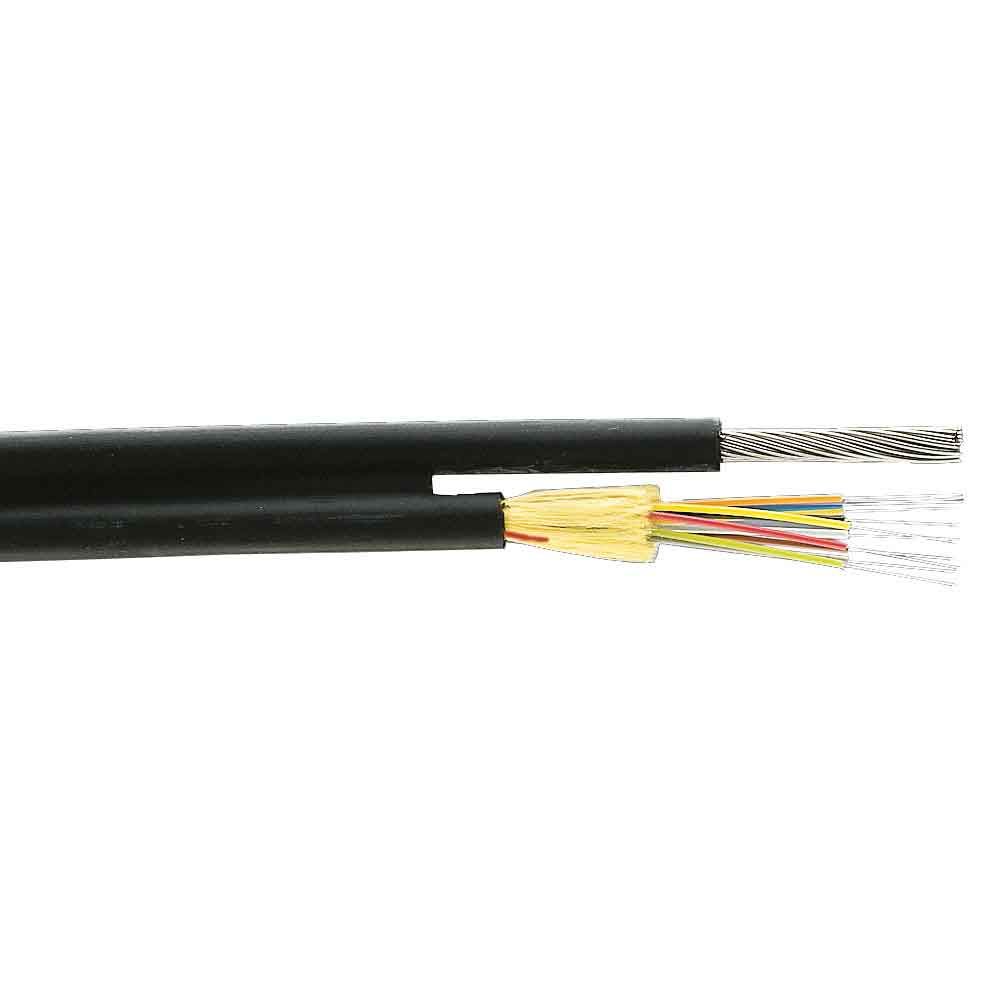

The 4-fiber multimode figure-eight aerial cable is designed for robust, self-supporting outdoor deployments. This cable features an integrated messenger wire, simplifying aerial installations by eliminating the need for separate lashing, which significantly reduces total labor time and project costs.
Engineered for harsh environments, this cable construction allows for easy separation between the fiber bundle and the messenger wire. Its wide operating temperature range ensures consistent performance across varying outdoor climate conditions.
Key Features
-
Self-Supporting Design
Features an integrated messenger wire that eliminates the need for separate lashing, streamlining installation. -
Figure-Eight Construction
Allows for quick, clean separation between the fiber element and the messenger for efficient termination. -
Multimode Fiber
Utilizes 62.5/125um fiber core geometry for reliable data transmission over shorter distances. -
Wide Temperature Rating
Operates effectively in environments ranging from -55\u00b0C to +85\u00b0C. -
Aerial Optimization
Specifically intended for pole-to-pole outdoor infrastructure, providing mechanical stability. -
Cost-Effective Deployment
Reduces overall installation time and material handling requirements.
Applications
- Aerial fiber optic networks
- Pole-to-pole outdoor distribution
- Outdoor campus backbones
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | AR04TB |
| Fiber Count | 4 |
| Fiber Type | Multimode |
| Core/Cladding Size | 62.5/125um |
| Cable Type | Figure Eight (Aerial) |
| Operating Temperature | -55°C to +85°C |
Frequently Asked Questions
What is the primary advantage of figure-eight cable?
The integrated messenger wire allows it to be self-supporting, which reduces installation time and costs compared to lashing standard cable to a separate messenger.
Can this cable be used for indoor installations?
This cable is designed specifically for outdoor aerial environments.
How is the fiber separated from the messenger?
The figure-eight construction is designed to be easily separated manually or with appropriate field tools during the termination process.
What is the fiber count for this specific part number?
This part (AR04TB) contains 4 fibers.
Is this cable singlemode or multimode?
This is a multimode cable with a 62.5/125um core/cladding size.
