Overview

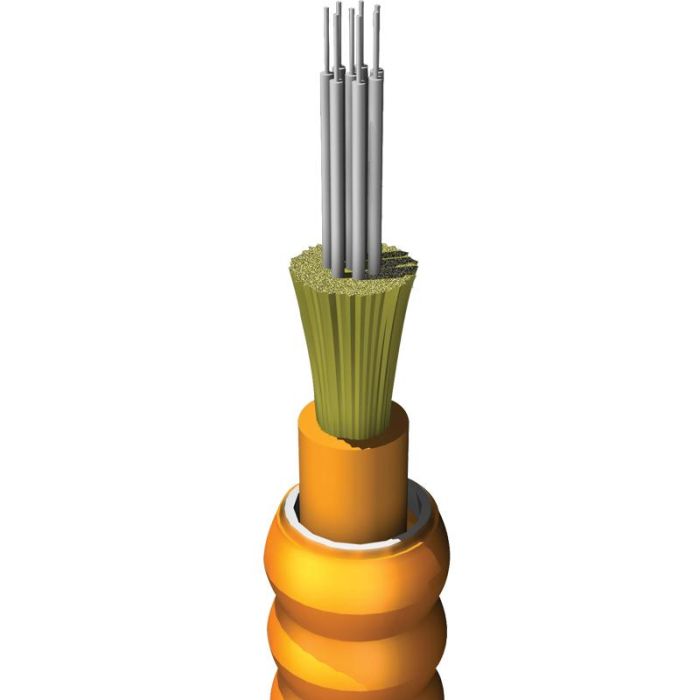

The AFL GIGA-Link Armored Tight Buffered Circular Premise Cable is a robust, multi-fiber solution designed for indoor routing where enhanced physical protection is required. Featuring a 12-fiber count, this cable is engineered for use in demanding industrial environments where increased rodent resistance and mechanical durability are necessary.
Constructed with an ETL-listed, flame-retardant jacket and interlocking aluminum armor, the cable provides an optimal balance of ruggedness, flexibility, and weight. It is suitable for deployment in manufacturing plants and various enterprise facilities. Please note that this product is not recommended for direct burial applications.
Key Features
-
Interlocking Aluminum Armor
Provides superior crush resistance and physical protection while maintaining cable flexibility for easier routing in tight spaces. -
Flame-Retardant Jacket
Ensures compliance with fire safety standards for safe indoor installation in plenum or riser environments. -
Tight Buffered Design
Simplifies connectorization and fiber termination processes, saving installation time. -
12-Fiber Count
Supports high-density connectivity requirements for backbone and premise cabling applications. -
Multimode 62.5/125µm Fiber
Optimized for short-to-medium distance data transmission within buildings. -
Rodent Resistant
The armored construction deters rodents, extending the service life of the cable in industrial environments.
Applications
- Indoor building backbone routing
- Industrial manufacturing plants
- Environments requiring enhanced rodent protection
- Cable runs requiring extra ruggedness
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Part Number | CP0126551201AIAP |
| Fiber Count | 12 |
| Fiber Type | Multimode |
| Core/Cladding | 62.5/125µm |
| Armor Type | Interlocking Aluminum |
| Jacket Material | Flame Retardant |
| Cable Construction | Tight Buffered, Circular Premise |
Frequently Asked Questions
Is this cable suitable for outdoor use?
This cable is designed for indoor premise use and is not recommended for direct burial or exposed outdoor environments.
What is the primary benefit of the interlocking armor?
The armor provides a significant increase in crush resistance and protection against physical damage, including rodent interference, while keeping the cable lightweight.
Can this be used for backbone cabling?
Yes, the 12-fiber construction is well-suited for building backbone and vertical riser applications.
Does this cable meet fire codes?
Yes, it is an ETL-listed, flame-retardant cable intended for indoor installation.
Are there length tolerances?
Yes, the allowable cable length for shipping and billing is -0/+10%.
