Overview

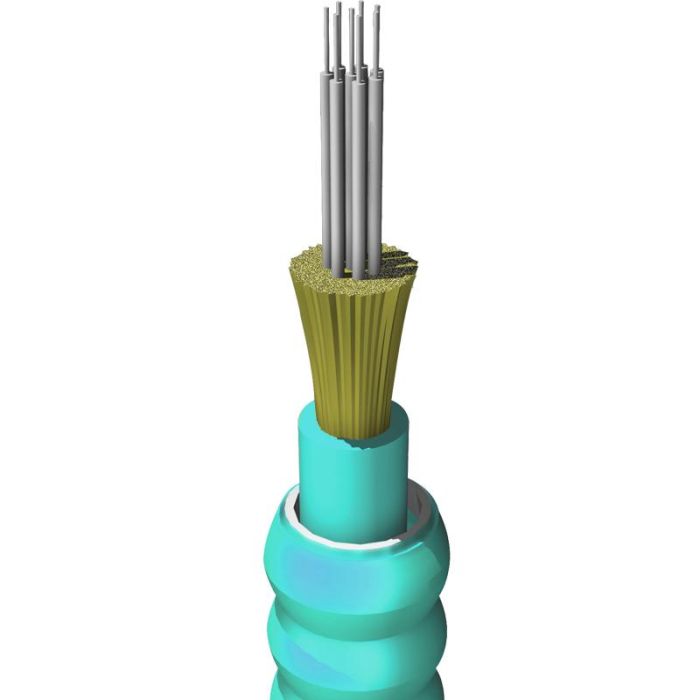

The AFL Armored Tight Buffered Circular Premise Cable is engineered for high-density networking environments requiring both physical protection and installation flexibility. Featuring a 24-fiber count with 50/125um multimode fiber, this cable is designed for indoor applications where increased durability is necessary, such as in manufacturing plants or areas prone to rodent activity.
Constructed with an interlocking aluminum armor, this cable provides a robust barrier against external impacts while maintaining the flexibility required for routing through tight spaces. It is finished with an ETL-listed, flame-retardant jacket for safety and compliance in indoor environments. Please note that this cable is not recommended for direct burial applications.
Key Features
-
Interlocking Aluminum Armor
Provides an effective balance of mechanical ruggedness and physical flexibility for challenging cable routes. -
24-Fiber Configuration
Supports high-capacity data transmission suitable for backbone or distribution applications. -
Tight Buffered Construction
Protects individual fibers and facilitates easier termination compared to loose tube designs. -
Flame Retardant Jacket
Meets established safety standards for installation within interior building environments. -
8.4mm Outer Diameter
Optimized diameter for efficient installation in conduit and cable trays. -
50/125um Multimode Fiber
Designed for reliable short-to-medium reach data networking performance.
Applications
- Indoor building backbone routing
- Manufacturing and industrial facility networks
- Areas requiring enhanced rodent resistance
- Cable trays and conduit installations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Fiber Count | 24 |
| Fiber Type | Multimode (50/125um) |
| Armor Type | Interlocking Aluminum |
| Cable Diameter | 8.4mm |
| Cable Length | 1641' (500 meters) |
| Construction | Tight Buffered |
Frequently Asked Questions
Is this cable suitable for direct burial?
No, this cable is not recommended for direct burial. It is designed for indoor premise applications.
What is the primary benefit of the interlocking armor?
It provides the best balance of physical ruggedness, flexibility, and low weight for routing in demanding industrial environments.
Does this cable meet fire safety ratings?
Yes, it features an ETL-listed, flame-retardant jacket suitable for premise installations.
Can the cable length vary?
Allowable cable length for shipping and billing is -0/+10% of the listed length.
