Overview

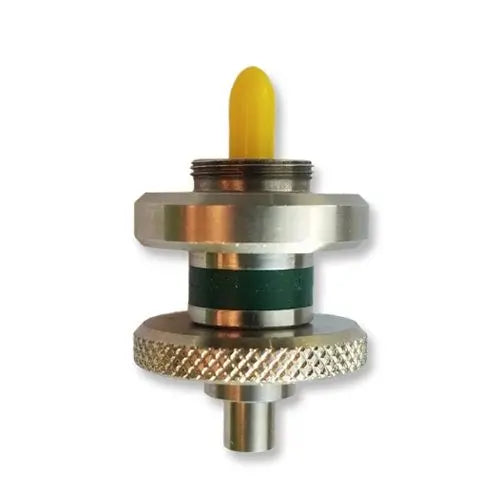

The AFL 2900-58-0001MR is a field-replaceable OTDR port saver designed to protect sensitive test equipment ferrules from premature wear and damage caused by repetitive mating cycles. This connector acts as a sacrificial interface between your OTDR and the fiber optic network under test.
Constructed with APC (Angled Physical Contact) geometry, this port saver ensures high-performance signal integrity with low reflectance. It is specifically designed for rapid, tool-free installation and compatibility with the FlexScan 2900-50 series of interchangeable adapters, making it an essential maintenance accessory for field technicians and network operators.
Key Features
-
Field-Replaceable Design
Allows for quick, tool-free replacement to eliminate the need for costly and time-consuming factory repairs. -
APC Ferrule Compatibility
Engineered to support APC-to-APC connections, minimizing signal reflection. -
Port Protection
Shields the primary OTDR ferrule from daily wear and tear during intensive testing operations. -
Color-Coded Identification
Features green bands for immediate visual confirmation of APC port compatibility. -
Interchangeable Adapter Support
Compatible with FlexScan 2900-50 series SC, LC, FC, and ST adapters for versatile connectivity. -
Low Insertion Loss
Maintains a high-quality optical path with an insertion loss of 0.75 dB or less. -
Optimized Reflectance
Provides low signal reflectance of -55 dB or less, critical for precise OTDR measurements.
Applications
- Fiber optic network troubleshooting
- OTDR maintenance and port protection
- FTTH PON network testing
- Field technician equipment protection
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 2900-58-0001MR |
| Connector Type | APC Female (OTDR-side) to APC Male (Fiber-side) |
| Insertion Loss | ≤ 0.75 dB |
| Reflectance | ≤ -55 dB |
| Height Increase | 0.6 in (16 mm) |
Frequently Asked Questions
What is the purpose of this port saver?
It protects the internal, expensive ferrule of your OTDR from damage during frequent cable changes in the field.
Is this compatible with all OTDRs?
It is specifically designed for the AFL FlexScan FS200, FS300, and TS100 series.
Can I change the connector type?
Yes, this port saver accepts interchangeable FlexScan 2900-50 series adapters such as SC, LC, FC, and ST.
How do I identify if I need this version?
This model features green color-coded bands, indicating it is for APC (Angled Physical Contact) fiber connections.
Does it affect my OTDR measurement accuracy?
With an insertion loss of ≤ 0.75 dB and reflectance of ≤ -55 dB, it is designed to minimize impact on standard OTDR measurements.
