Overview

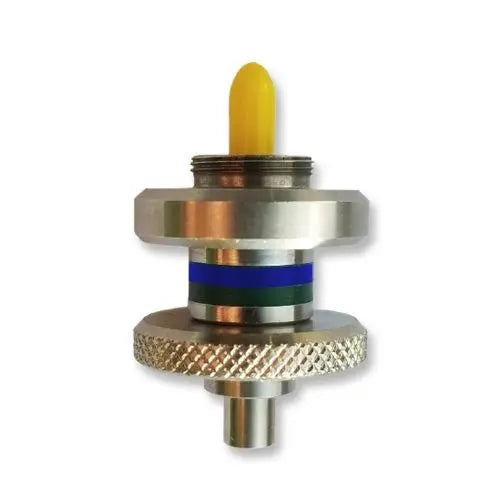

The AFL 2900-58-0002MR is a field-replaceable connector designed to protect sensitive OTDR port ferrules from damage caused by frequent mating and unmating. By acting as a sacrificial interface, this port saver preserves the integrity of the primary optical hardware, significantly reducing the need for costly and time-consuming factory repairs.
This unit features an APC female interface for the testing device side and a UPC male interface for the fiber-under-test side, effectively bridging different connector standards in the field. Its robust design allows for tool-free installation and compatibility with interchangeable connector adapters, making it an essential component for technicians performing repetitive fiber network testing.
Key Features
-
Ferrule Protection
Prevents damage to the primary OTDR port ferrule by absorbing wear from repeated connections. -
APC-to-UPC Conversion
Enables seamless testing between APC-configured devices and UPC-terminated fiber networks. -
Tool-Free Installation
Allows for rapid field setup and replacement without the need for specialized tools. -
Interchangeable Adapters
Supports FlexScan 2900-50 series SC, LC, FC, and ST connector adapters. -
Color-Coded Identification
Uses green bands for APC female ports and blue bands for UPC male ports to reduce connection errors. -
Compact Design
Minimal footprint, extending the connector adapter height by only 0.6 inches (16 mm).
Applications
- Fiber optic network troubleshooting
- OTDR port preservation in field environments
- PON (Passive Optical Network) verification
- FTTH installation testing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 2900-58-0002MR |
| Connector A (Device Side) | APC Female |
| Connector B (Fiber Side) | UPC Male |
| Insertion Loss | ≤ 0.75 dB |
| Reflectance | ≤ -45 dB |
| Extension Height | 0.6 in (16 mm) |
Frequently Asked Questions
What is the purpose of this device?
It serves as a replaceable interface to protect the expensive, fixed OTDR port ferrule from damage caused by repeated mating cycles.
Is this compatible with my FlexScan tester?
Yes, it is designed for use with the FlexScan FS200, FS300, and TS100 FTTH PON Troubleshooter.
Can I change the connector type?
Yes, the unit accepts tool-free, interchangeable FlexScan 2900-50 series SC, LC, FC, and ST connector adapters.
What do the color-coded bands indicate?
Green bands denote the APC female side (tester-facing), and blue bands denote the UPC male side (fiber-facing).
Does it come with a protective cover?
Yes, a dust cap is included and can be used whether or not the adapter is installed.
