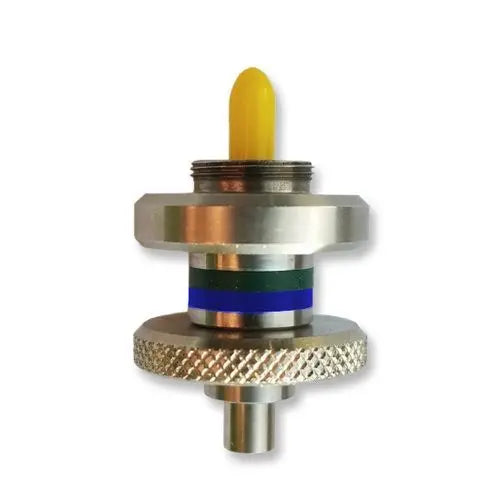

The AFL 2900-58-0003MR is a field-replaceable OTDR connector designed to serve as a port saver for optical test equipment. It features a UPC female interface for connecting to the test unit and an APC male interface for the fiber link, providing a critical buffer to prevent damage to the instrument's internal ferrules during frequent mating cycles.
This port saver is constructed for quick, tool-free installation and is designed to accommodate interchangeable SC, LC, FC, and ST connector adapters from the FlexScan 2900-50 series. It is intended for use in field environments, offering an easy-to-identify color-coded system to ensure correct port orientation, ultimately helping to minimize expensive factory repairs.
Key Features
-
UPC to APC Conversion
Specifically designed to convert a UPC-based OTDR port to an APC interface for improved connection compatibility. -
Ferrule Protection
Extends the life of the instrument's main port by absorbing wear and tear during repeated testing operations. -
Field-Replaceable
Allows for rapid replacement in the field, eliminating the downtime and costs associated with manufacturer repairs. -
Tool-Free Installation
Engineered for simple, fast mounting onto the OTDR unit without the need for specialized tools. -
Interchangeable Adapters
Fully compatible with FlexScan 2900-50 series connector adapters for SC, LC, FC, and ST configurations. -
Color-Coded Identification
Features blue (UPC female) and green (APC male) bands for clear visual identification of port types. -
Low Insertion Loss
Maintains high signal integrity with an insertion loss of ≤ 0.75 dB. -
Controlled Reflectance
Operates with a reflectance of ≤ -45 dB to support accurate OTDR traces.
Applications
- Field fiber optic testing
- FTTH network troubleshooting
- OTDR port maintenance
- PON (Passive Optical Network) validation
Compatibility
Test Equipment- FlexScan FS200 series OTDR
- FlexScan FS300 series OTDR
- TS100 series FTTH PON Troubleshooter
Technical Specifications
| Specification | Value |
|---|---|
| Model | 2900-58-0003MR |
| Port A Interface | UPC Female |
| Port B Interface | APC Male |
| Insertion Loss | ≤ 0.75 dB |
| Reflectance | ≤ -45 dB |
| Added Height | 0.6 in (16 mm) |
Frequently Asked Questions
What is the purpose of this device?
It protects the expensive internal ferrule of your OTDR port by acting as a sacrificial connection point that can be easily replaced.
Does this require tools to install?
No, it is designed for tool-free, quick installation on compatible test units.
What color coding does it use?
It uses a blue band to signify the UPC female (OTDR-facing) end and a green band to signify the APC male (fiber-facing) end.
Is it compatible with all FlexScan OTDRs?
It is compatible with FlexScan FS200 and FS300 series, as well as the TS100 FTTH PON Troubleshooter.
What connectors are supported with this adapter?
It accepts interchangeable FlexScan 2900-50 series adapters, including SC, LC, FC, and ST types.
