Overview

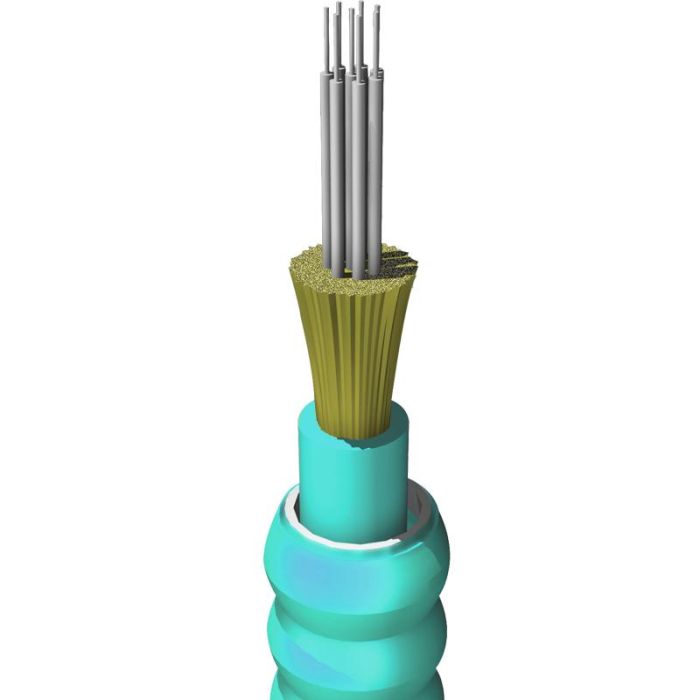

The AFL Armored Tight Buffered Circular Premise Cable is a high-performance fiber optic solution engineered for environments requiring extra physical protection. Featuring a 6-fiber configuration with 50/125um multimode fiber, this cable is designed to support 10GB network applications in demanding settings.
Constructed with an ETL-listed, flame-retardant jacketed aluminum, the interlocking armor provides an optimal balance of ruggedness, flexibility, and low weight. This design is specifically intended for routing inside buildings where increased rodent resistance and protection against mechanical stress are required, such as in manufacturing plants and harsh industrial environments.
Key Features
-
Interlocking Aluminum Armor
Provides superior mechanical protection and crush resistance while maintaining cable flexibility. -
6-Fiber Configuration
Supports multiple data channels within a single, protected 4.4mm outer jacket. -
Flame-Retardant Jacket
Ensures compliance with building safety codes for indoor installations. -
Rodent Resistant
The armored construction offers enhanced protection against environmental pests in industrial settings. -
10GB Optimized
Utilizes 50/125um multimode fiber for high-bandwidth data transmission over short-to-medium distances. -
Lightweight Design
Maintains ease of installation despite the added protection of the metallic armor.
Applications
- Indoor building routing requiring high ruggedness
- Industrial manufacturing plants
- Environments requiring rodent-resistant cabling
- Harsh indoor environments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Part Number | CP006L441C01BIFAIAP |
| Fiber Count | 6 |
| Fiber Type | Multimode (50/125um) |
| Cable Diameter | 4.4mm |
| Construction | Interlocking Aluminum Armor |
| Rating | ETL Listed / Flame Retardant |
Frequently Asked Questions
Is this cable suitable for direct burial?
No, this cable is not recommended for direct burial. It is designed for indoor premise applications.
What is the primary benefit of the interlocking armor?
The armor provides a high level of ruggedness and crush resistance while maintaining the flexibility needed for routing through conduits and buildings.
Does this cable support 10Gbps speeds?
Yes, the 50/125um multimode fiber is optimized for 10Gb network applications.
Are there length tolerances for orders?
Yes, the allowable cable length for shipping and billing is -0/+10%.
Is this a loose tube or tight buffered cable?
This is a tight buffered cable as specified by the manufacturer series.
